| Dimensions & Capacities |

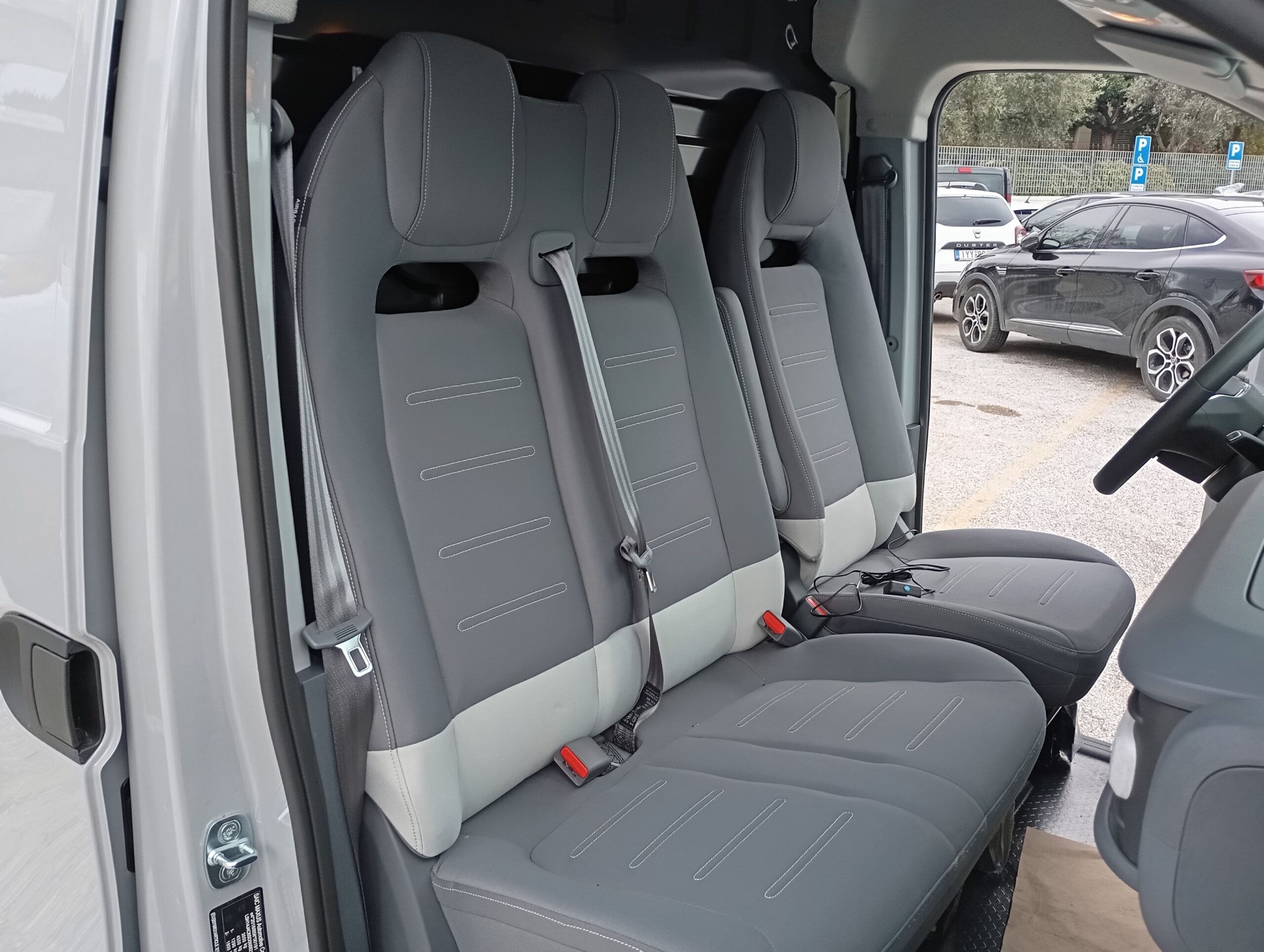

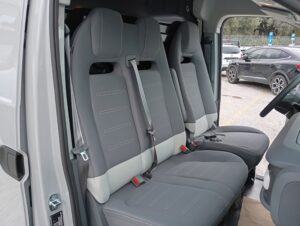

| Seating layout: 3 seats |
S |
| Seating layout: 2 seats |
O |

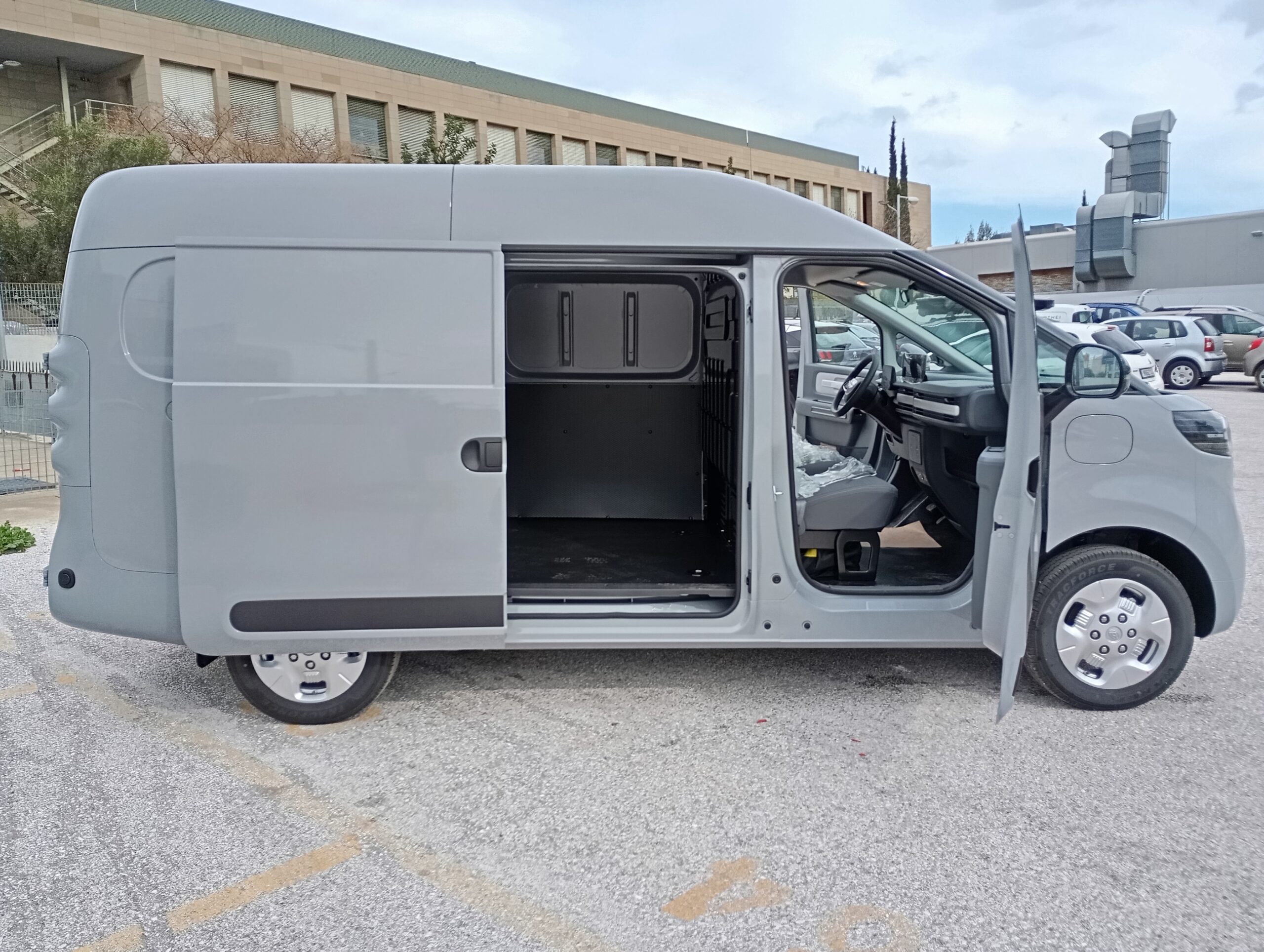

| Sliding door |
Double |
| Overall length (mm) |
4800 |
| Overall width (mm) |
1874 |
| Overall height (mm) |
2180 |
| Wheel base (mm) |
3100 |
| Cargo volume (m³) |
7,6 |

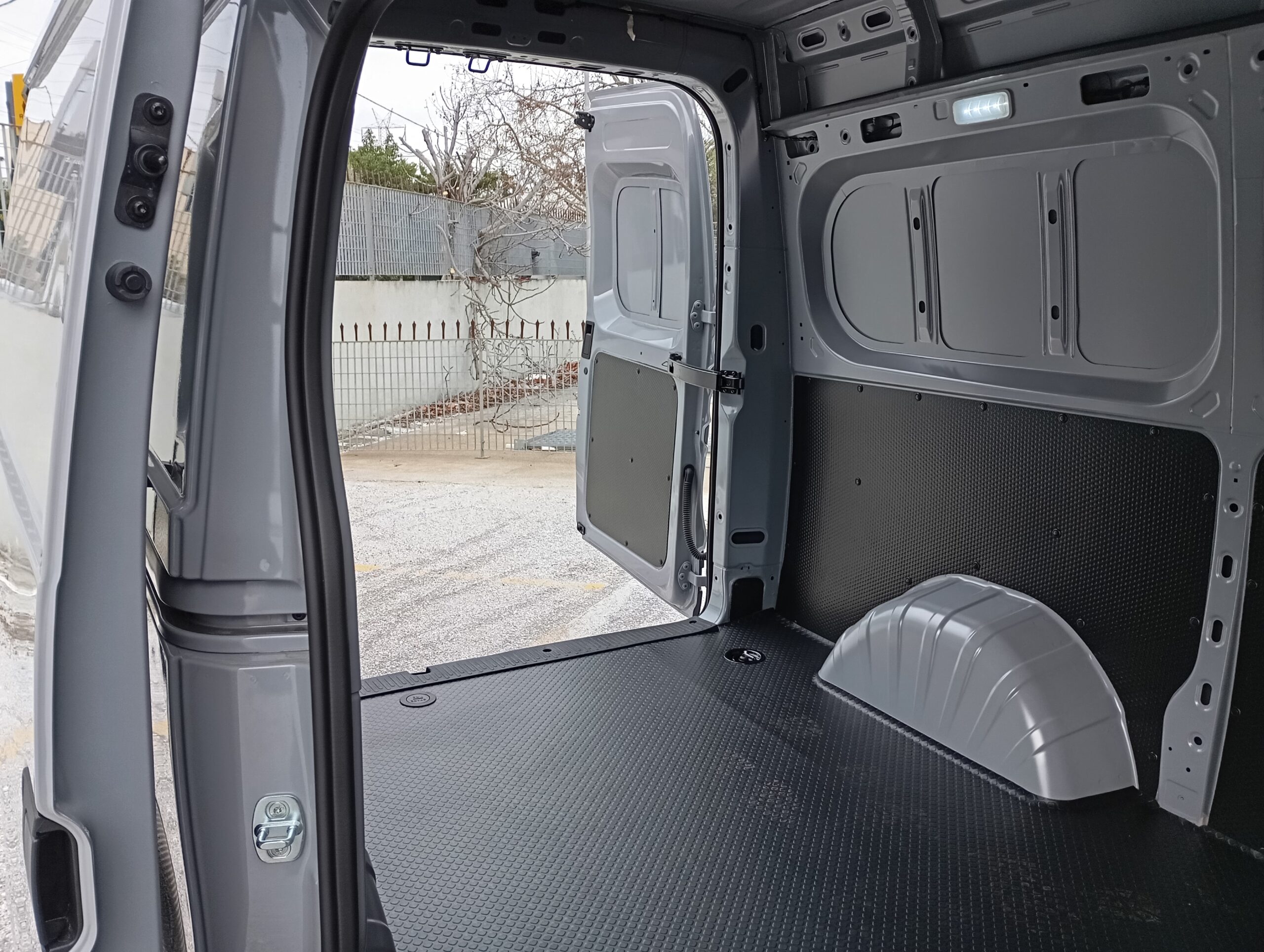

| Loadspace length (mm) |
2654 |
| Loadspace width (mm) |
1704 |
| Loadspace height (mm) |
1675 |
| Max loadspace width between wheel arches（mm） |
1250 |
| Slide door width（mm） |
873 |
| Slide door height（mm） |
1243 |
| Ground clearance of the front axle (mm) |
159 |
| Ground clearance of the rear axle (mm) |
148 |
| Ground clearance between axles (mm) |
146 |
| Weights & Payload |
| GVW(kg) |
3050 |
| CVW(kg) |
1850 |
| Payload：GVW-CVW(kg) |
1200 |
| GVW axle load: front/rear(kg) |
1205/1845 |
| Max axle lead: front/rear(kg) |
1290/1800 |
| GTM (kg) |
4550 |
| Towing capacity (Braked/Unbraked)(kg) |
1500/750 |
| Battery & Charging |
| Battery capacity（kWh） |
64 |
| Range WLTC combined (km)* |
305 |
| Range WLTC city (km)* |
467 |
| Energy consumption WLTC combined (kWh/100km)* |
23.1kWh/100km |
| AC Charging time (5%~100%) (h)/ Charging power (kW) Three-Phase |
7.5h/11kw（S） |
| DC Charging time (10%~80%) (h)/ Charging power (kw) |
42min/70kw (S) |
| Battery thermal management：liquid cooling & liquid heating |
S |
| AC Charging Cable |
S |
| ePTO(w/o discharging panel ) |
S |
| V2L(through charging port, w/o discharging gun) |
O |
| Power & Driving & Steering |
| Driving wheel |
FWD |
| EPS(Electric Power Steering) |
S |
| Max power (kW) |
120 |
| Max torque（N.m) |
240 |
| Max speed（km/h) |
120 |
| Acceleration 0-50km/h (sec) |
4,9 |
| Acceleration 0-100km/h (sec) |
10,7 |
| Min turning diameter（m） |
11,5 |
| Approach angle/departure angle (CVW)（°） |
25.1/20.8 |
| Approach angle/departure angle (GVW)（°） |
22.3/16.9 |
| Tyre |
195/65 R16 |
| Exterior |

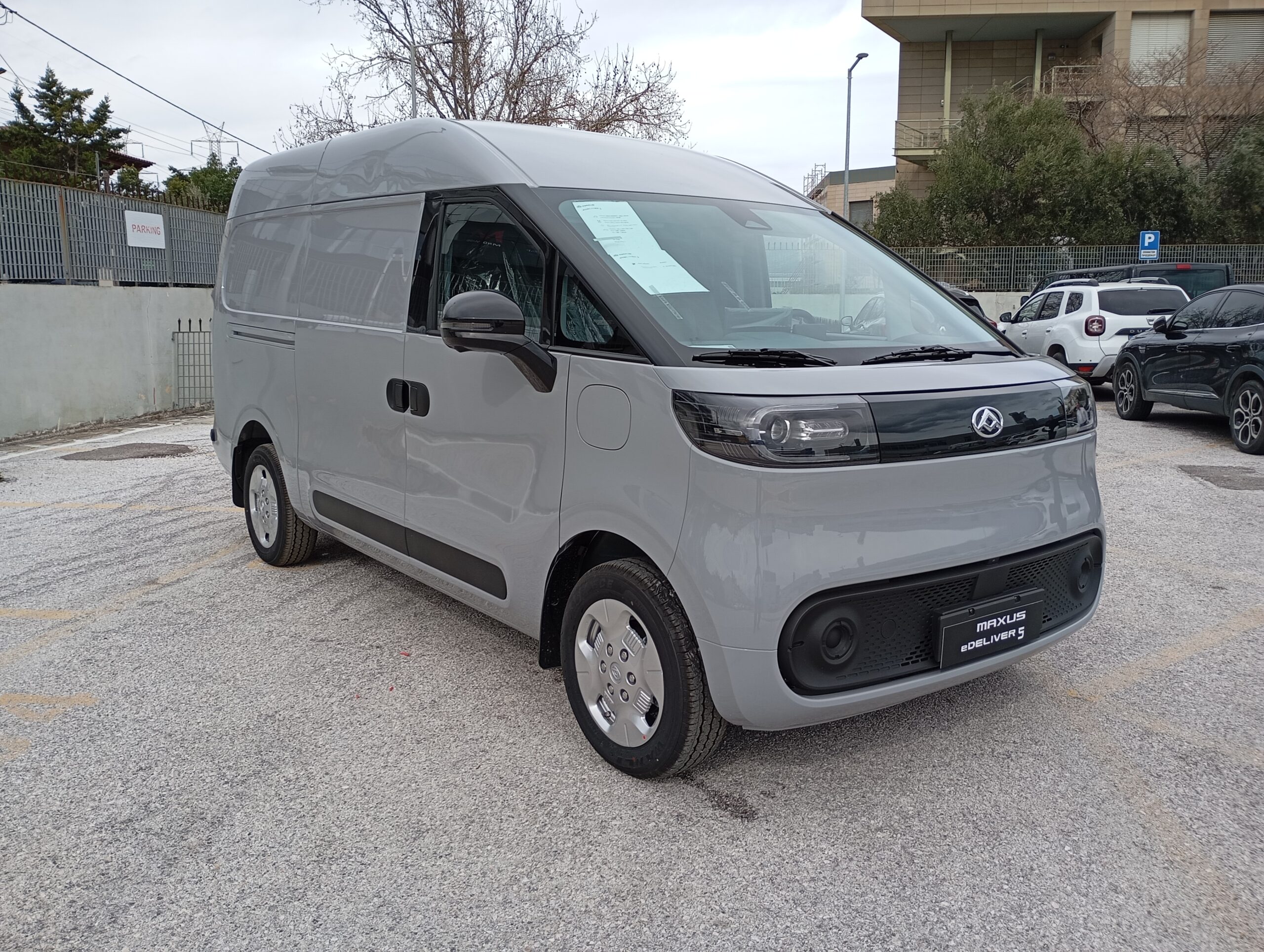

| LED headlights |
S |
| Halogen tail lights |
S |
| Front & rear fog lights |
—, Rear fog light |

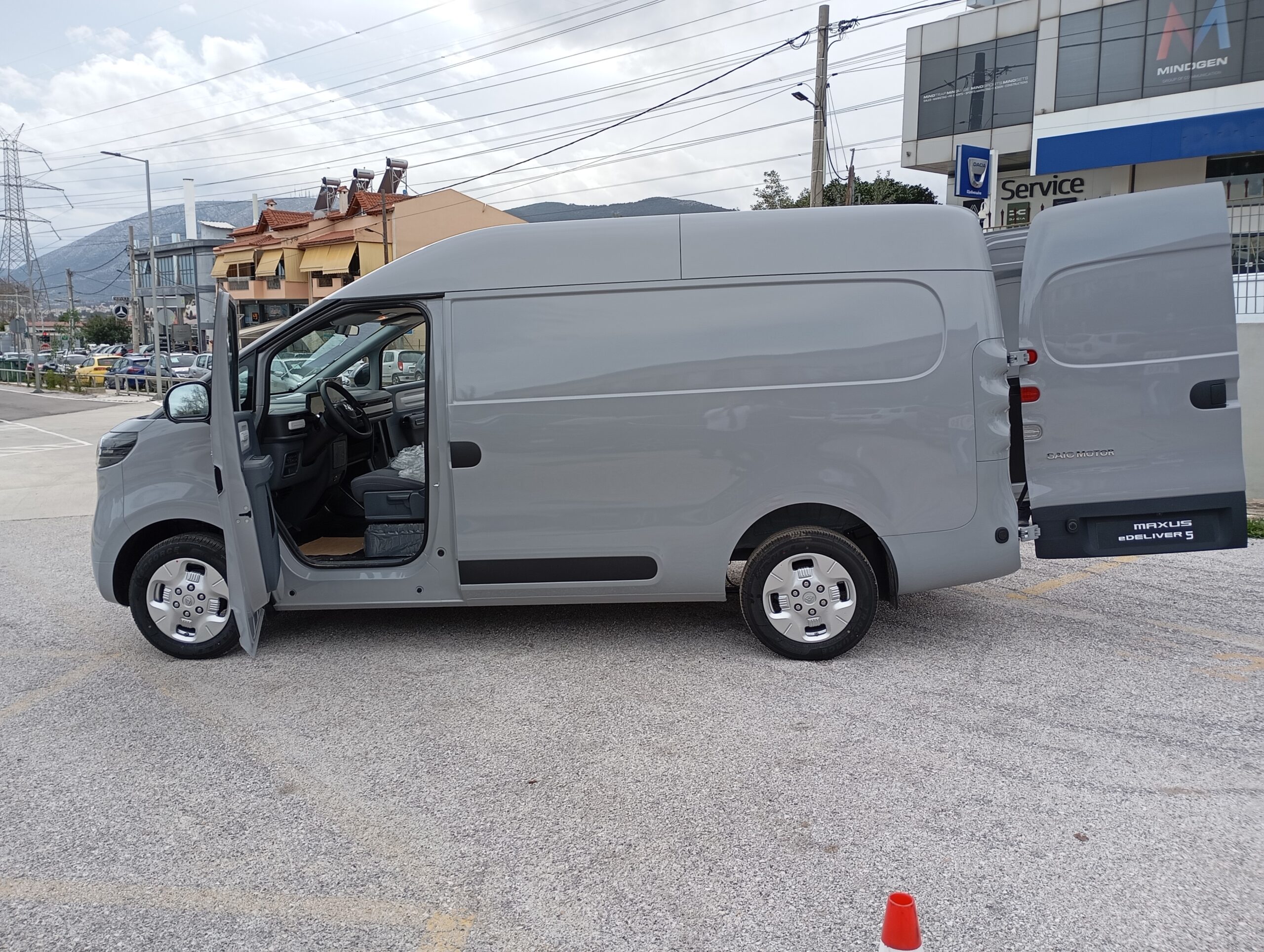

| Single sliding door |
— |
| Dual sliding door |
S |

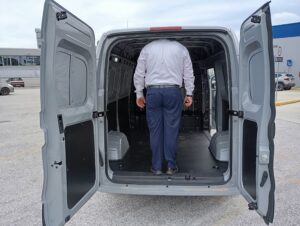

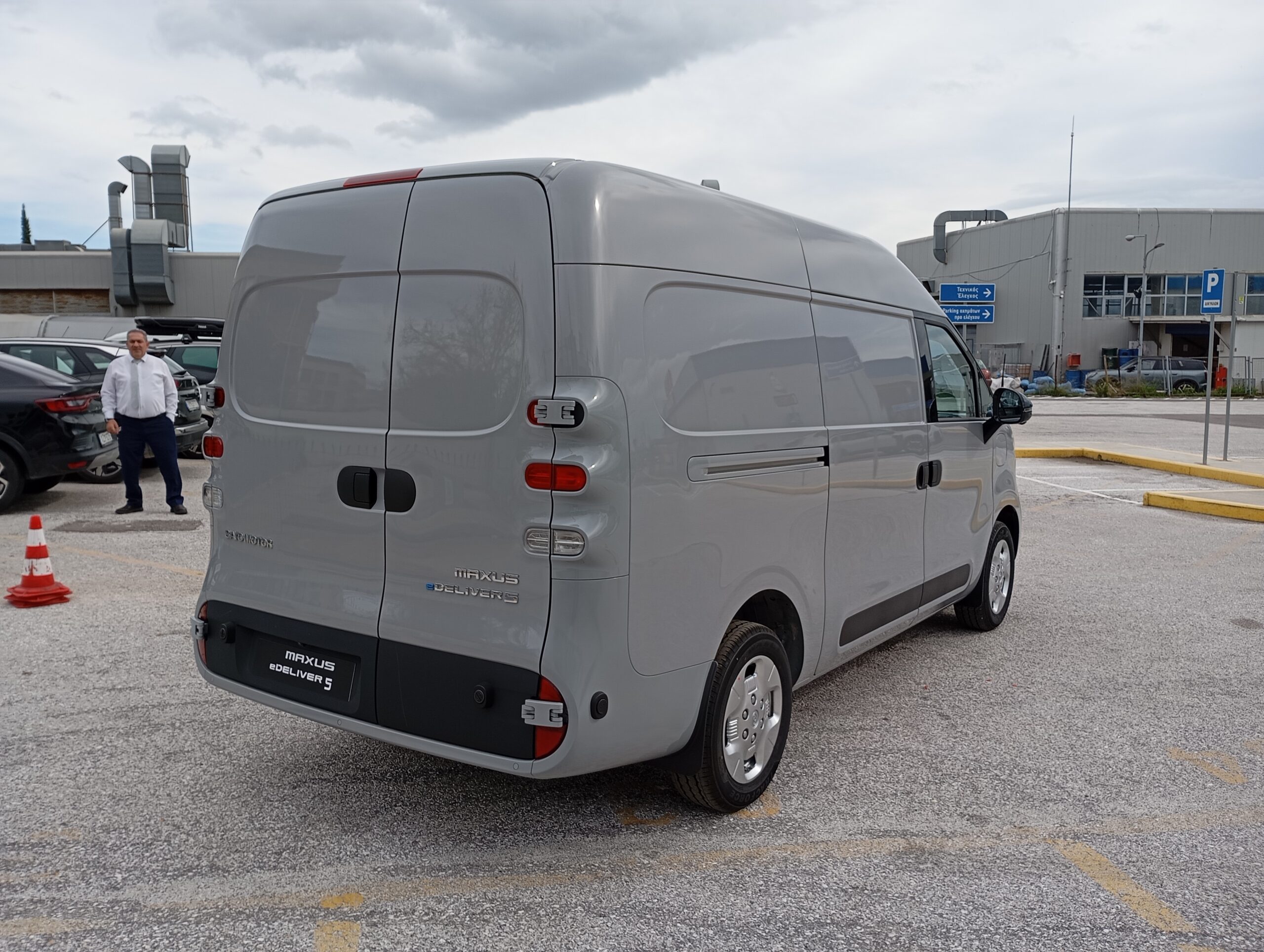

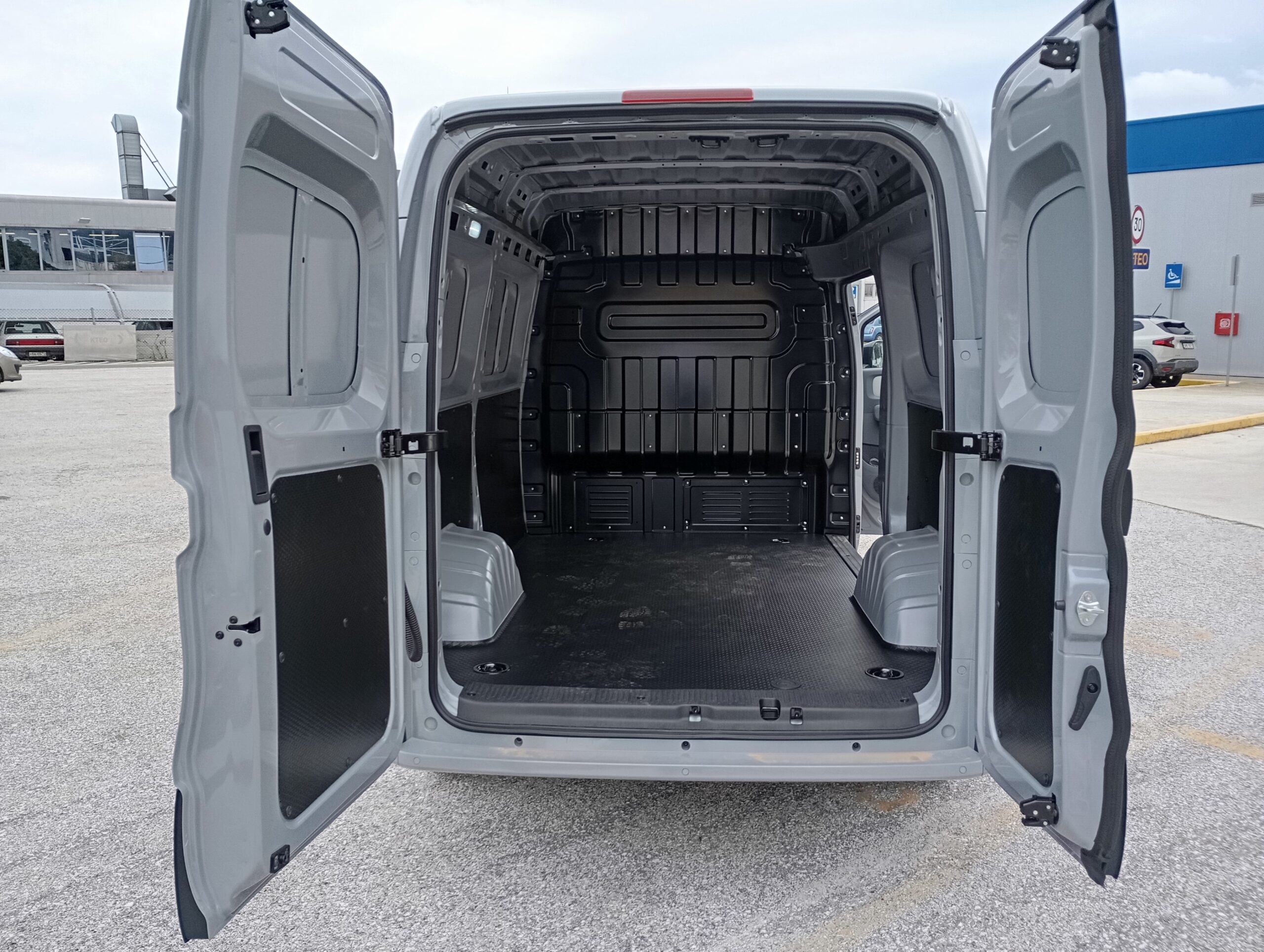

| Rear wing doors with 180°hinges |
S |
| Alloy wheel 6.5Jx16 |
S |
| Power heated exterior mirrors |
S |
| Power side step*** |
— |
| Removable front tow hook |
S |
| Exterior paint: Warm White |
S |
| Exterior paint: Cement Ash |
O |
| Exterior paint: Metal Black (metalic paint) |
O |

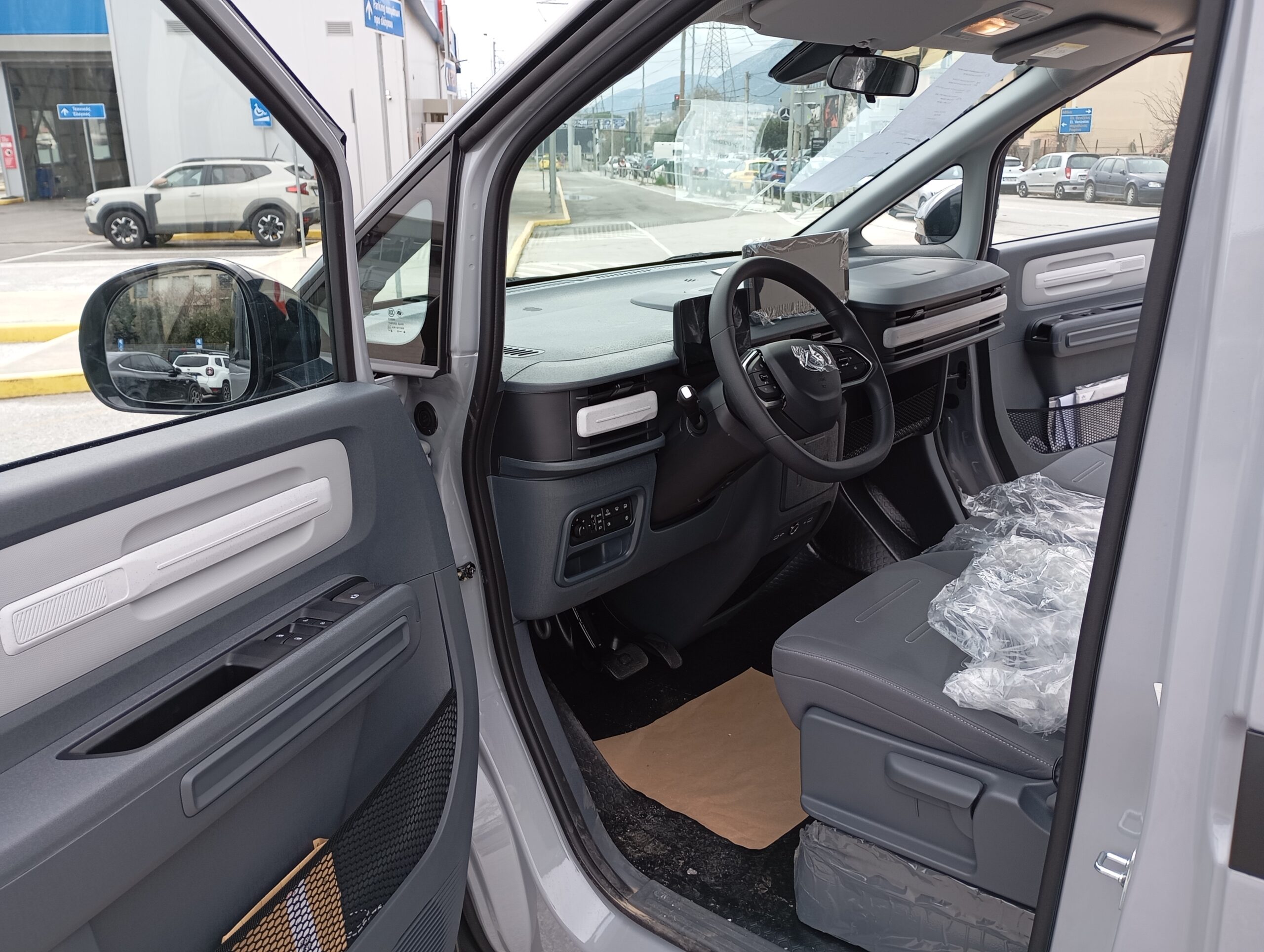

| Interior & Comfort |

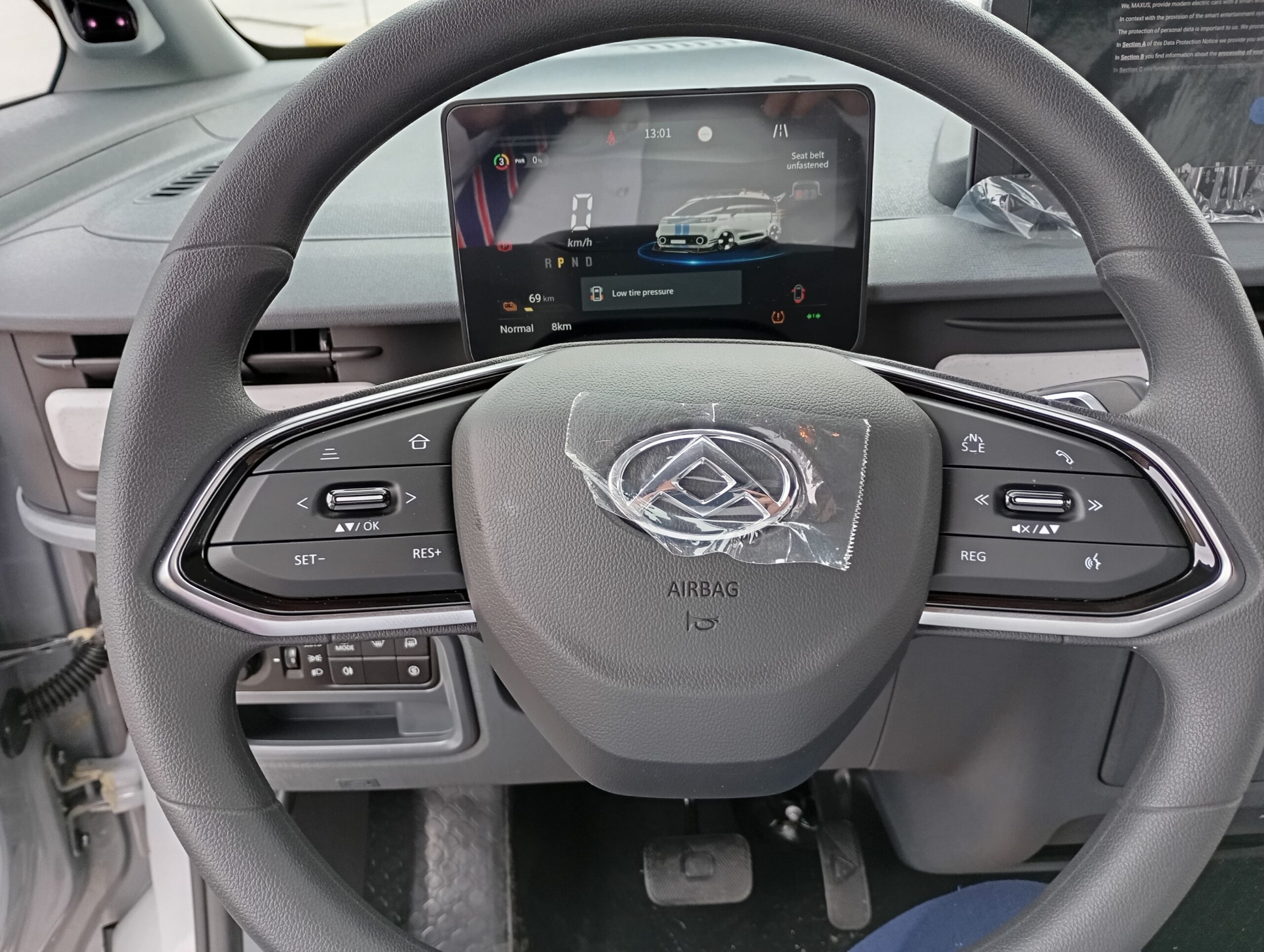

| PVC multifunctional steering wheel |
S |
| Manual anti-glare interior mirror |
S |
| Column-mounted shifter |
S |
| Heated front seats |
S |
| LED front reading light |
S |

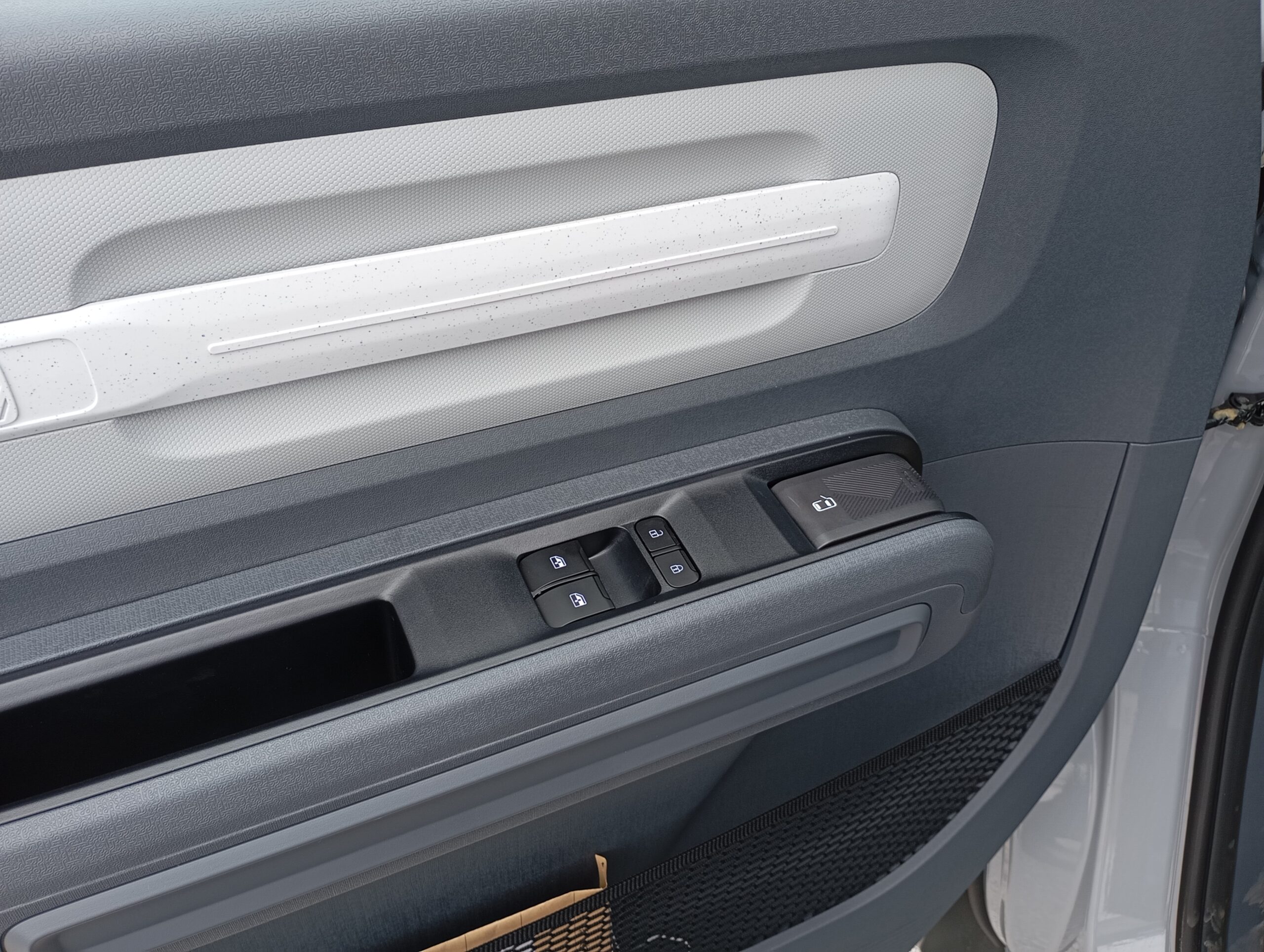

| Power front windows (one click up & down) |
S |
| Windshield wiper |
S |

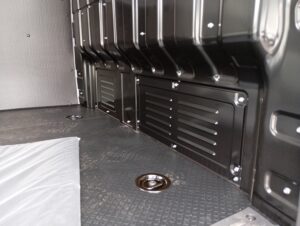

| LED cargo lights |
S |
| Manual air conditioning |
S |

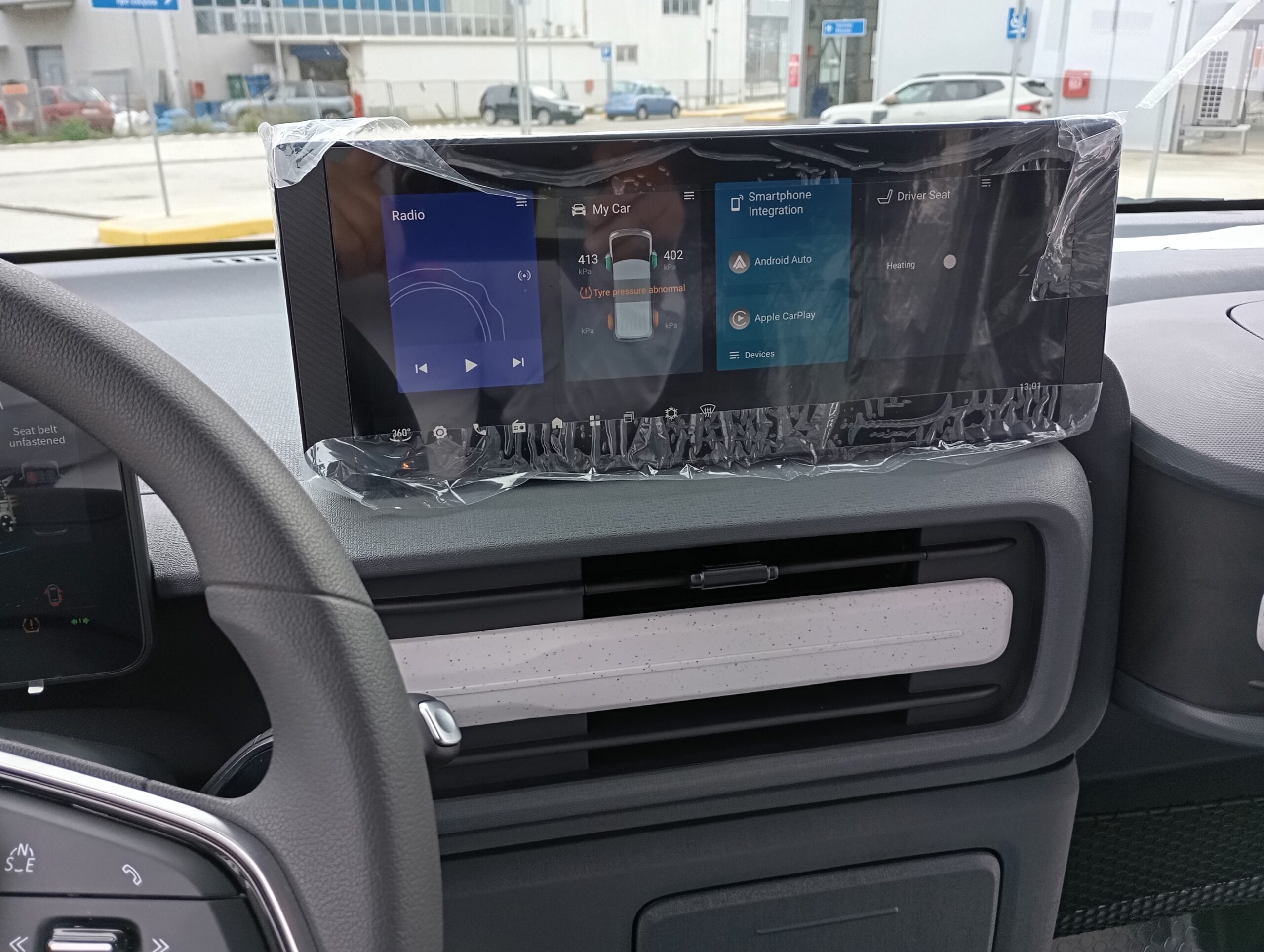

| 12.3″ touch screen with MP5 & USB & Bluetooth & Wirelss Carplay & Android Auto & DAB |
S |

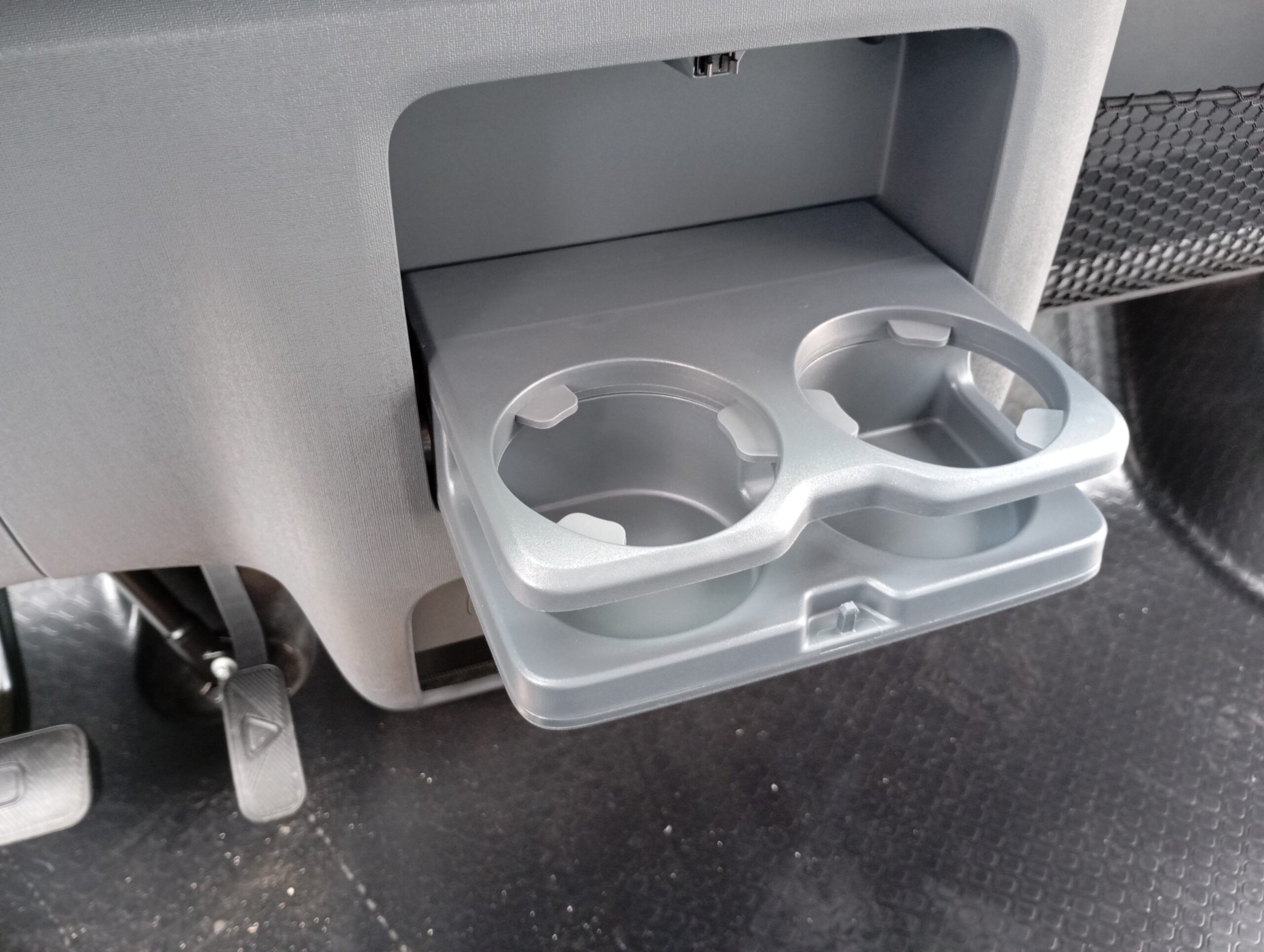

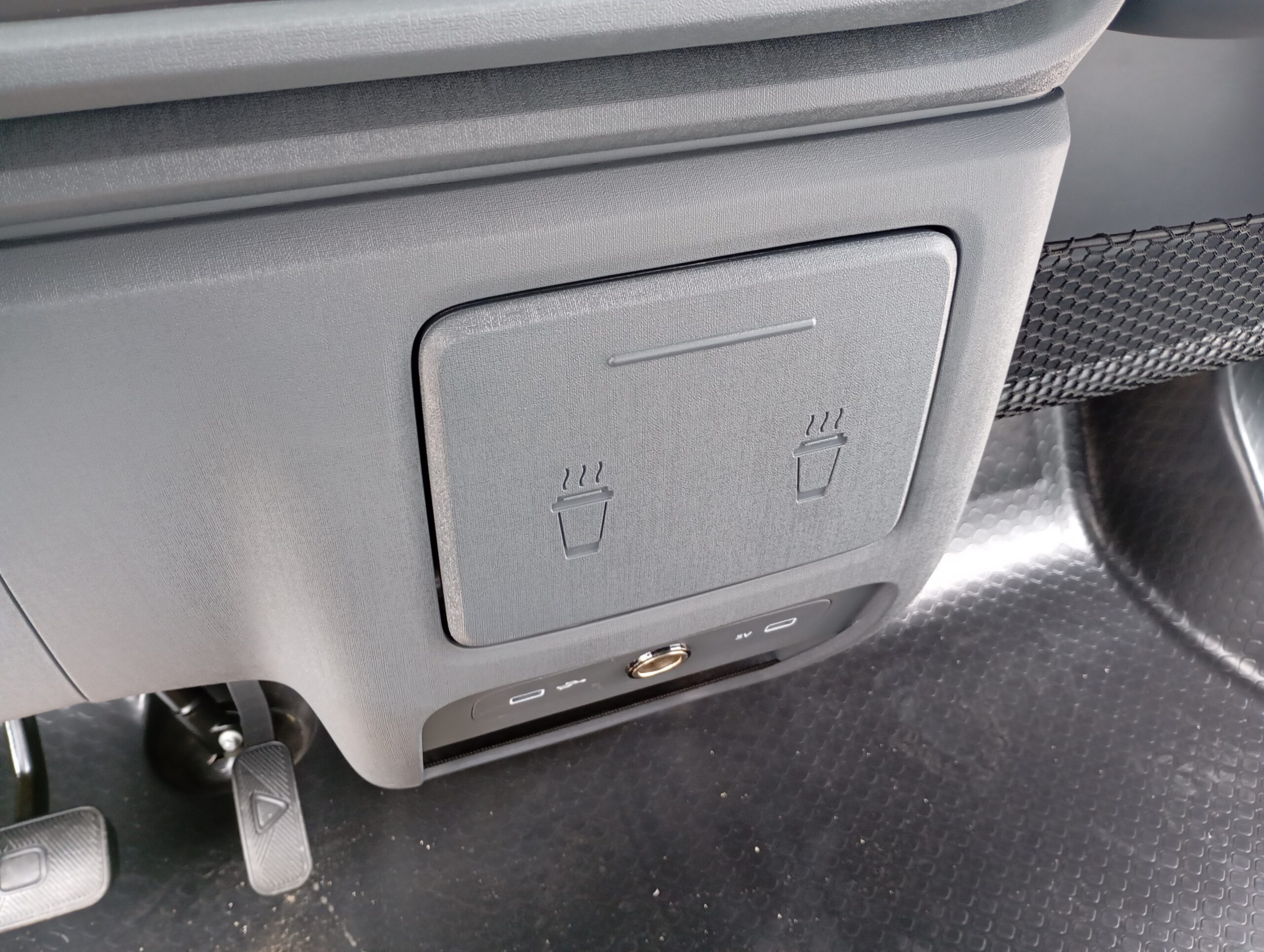

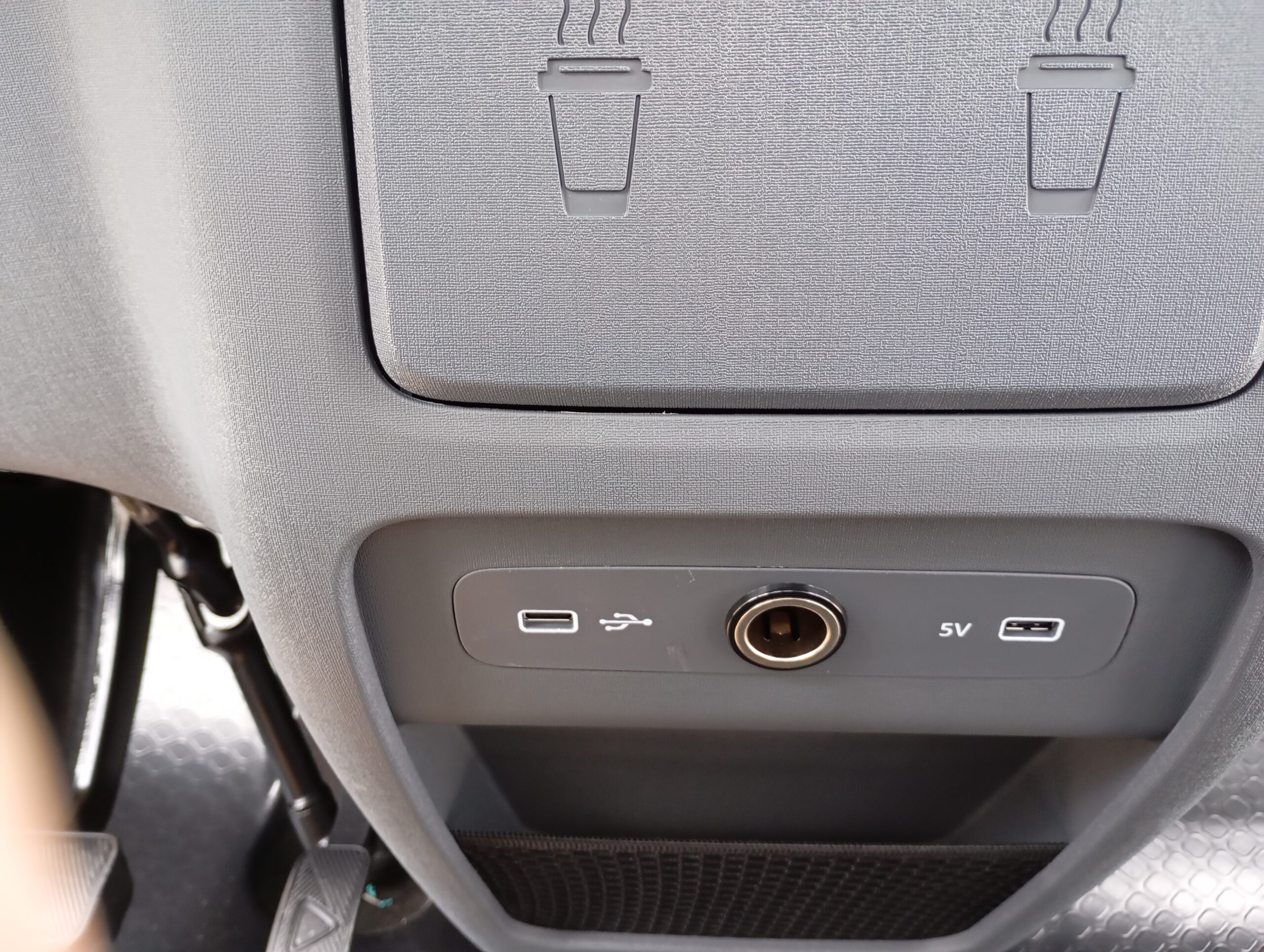

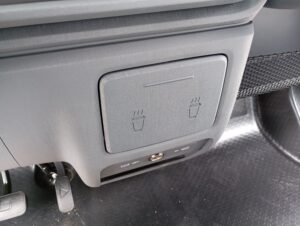

| 12V power outlet (under cup holder) |
S |
| 2 speakers |
S |
| Keyless start (PEPS system) |
S |
| 2 smart keys |
S |
| IOV（Internet of vehicle, incl. navigation/remote control） |
O |
| Safety & Security |

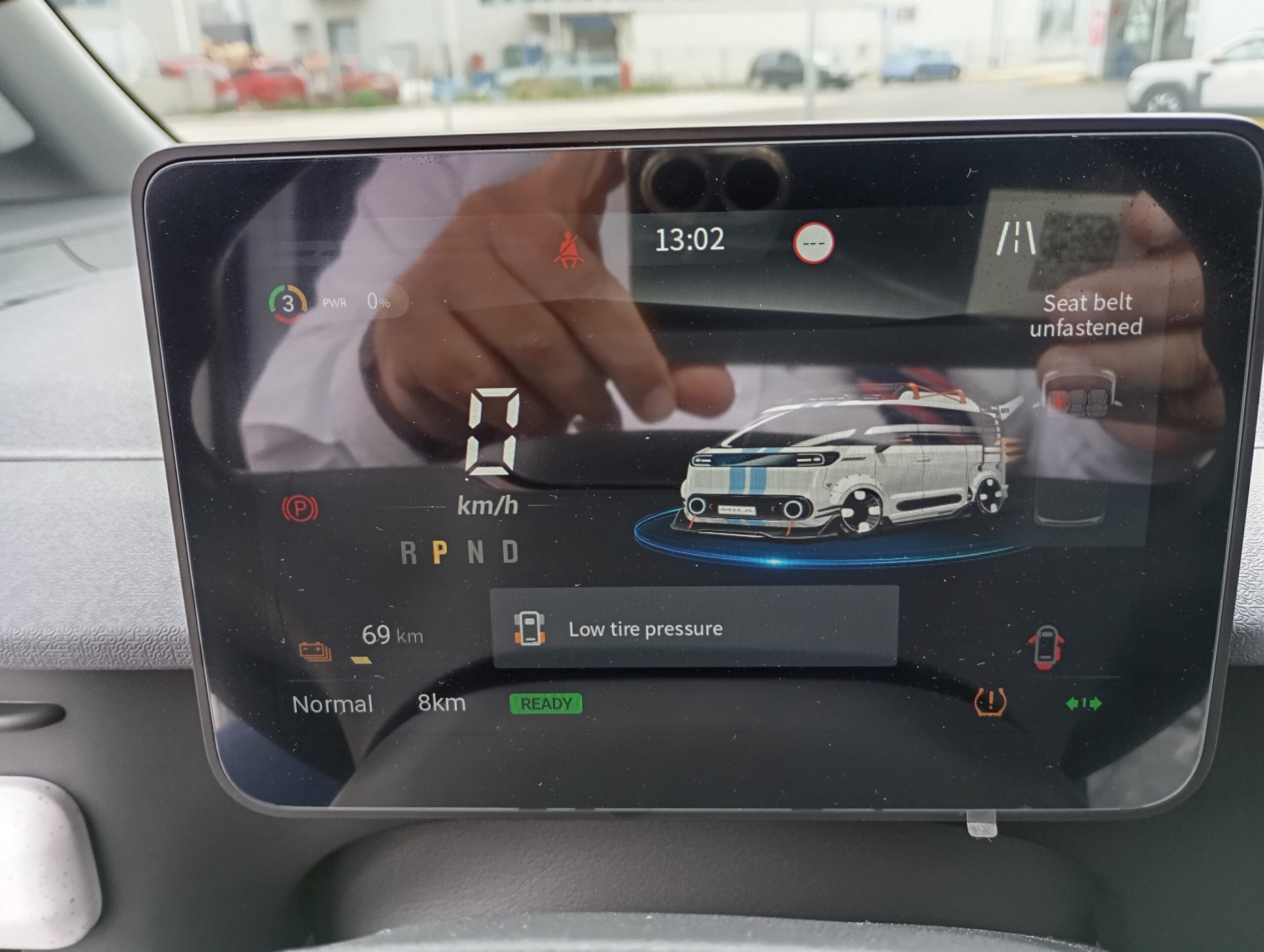

| Tyre pressure monitoring system |
S |
| ABS+EBD+ESC |
S |
| Front and Side Airbags for Driver & front passengers |
S |
| ECall |
S |
| Safety belt reminder |
S |

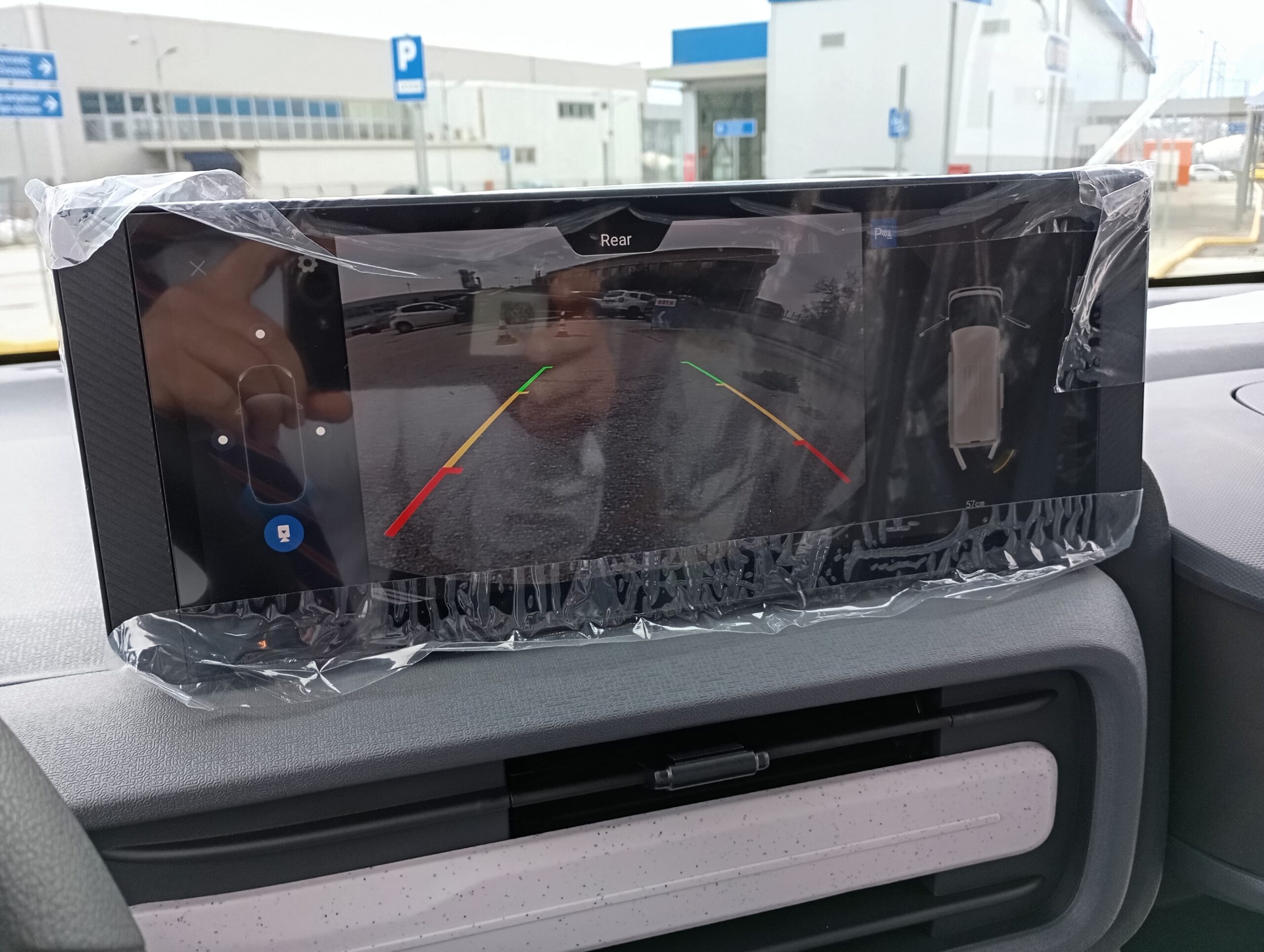

| 360 around-view system |
S |
| Rear parking sensor |
S |
| Driver Assistance |
|
| FCW (Forward Collision Warning) & AEB (Automatic Emergency Braking) |
S |
| ACC (Adaptive Cruise Control） |
S |
| LDW (Lane Departure Warning) |
S |
| LKA (Lane Keep Assist) |
S |
| ELK (Emergency Lane Keeping) |
S |
| SLIF (Speed Limit Information Function) |
S |
| IHC (Intelligent High beam Control) |
S |
| DSM (Driver State Monitoring） |
S |
