L2H1 |
|
Single Slinding Door |
Dual Slinding Door |

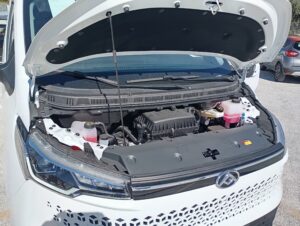

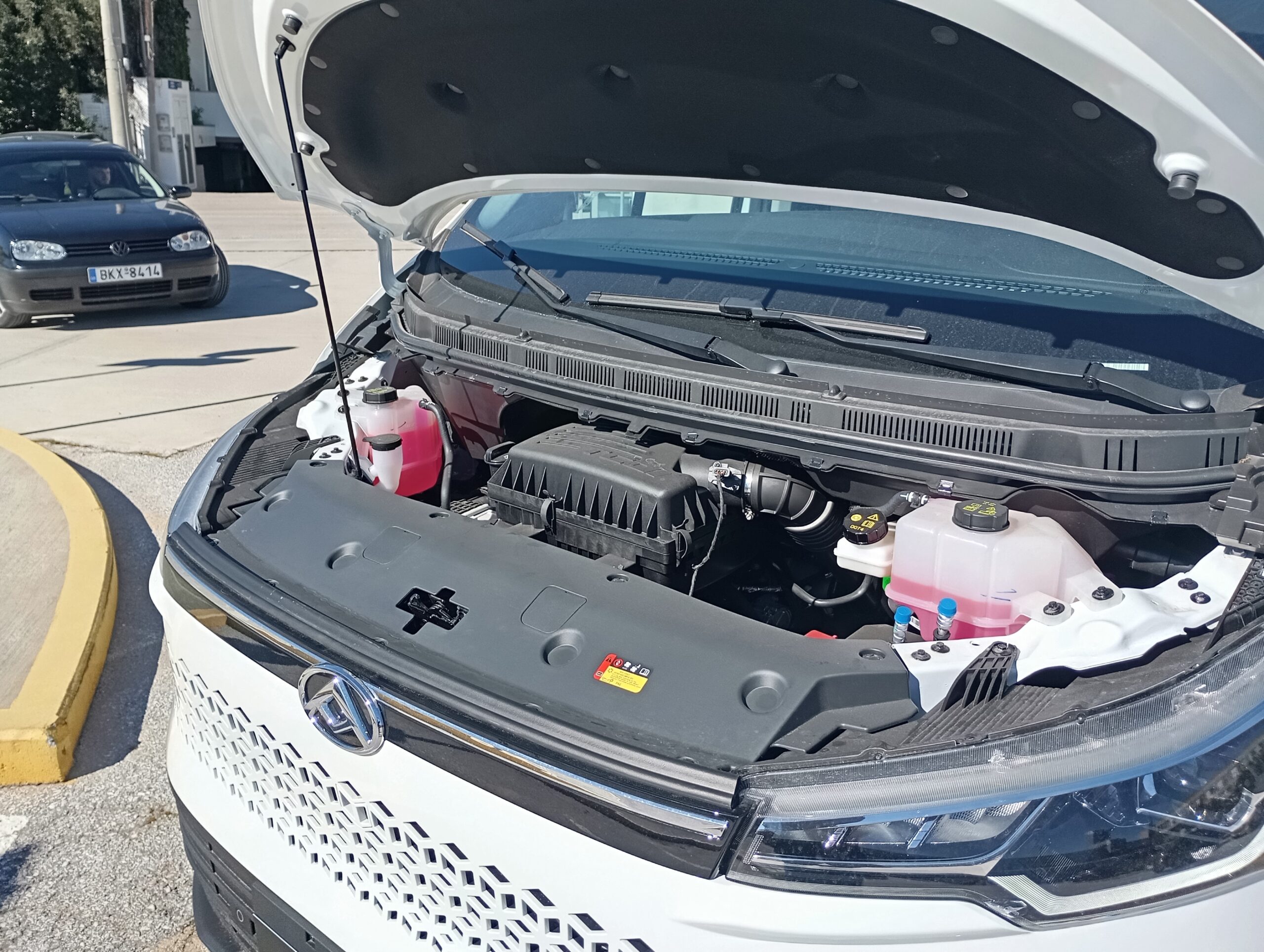

| Engine&Transmission |
| Engine |
SAIC π D20 |
| Type |
Four-cylinder 16-valve, double EGR, dual-axis balancing system, dual independent cooling cycle, variable displacement oil pump, variable eddy current ratio SAIC π diesel engine |
| Capacity (ml) |
1996 |
| Cylinders/Volves |
4/16 |
| Max Power (kW / rpm) |
110/3500 |
| MaxTorque (Nm / rpm) |
375/1500~2400 |
| Fuel System |
DIESEL |
| Euro Emission Status |
EURO VI E |
| Fuel Tank Capacity (Litres) |
80 |
| Fuel Efficiency(WLTP Combined) |
7,9 |
7,9 |
| WLTP CO2 g/km |
205,4 |
205,4 |
| Stop & Start System |
YES |

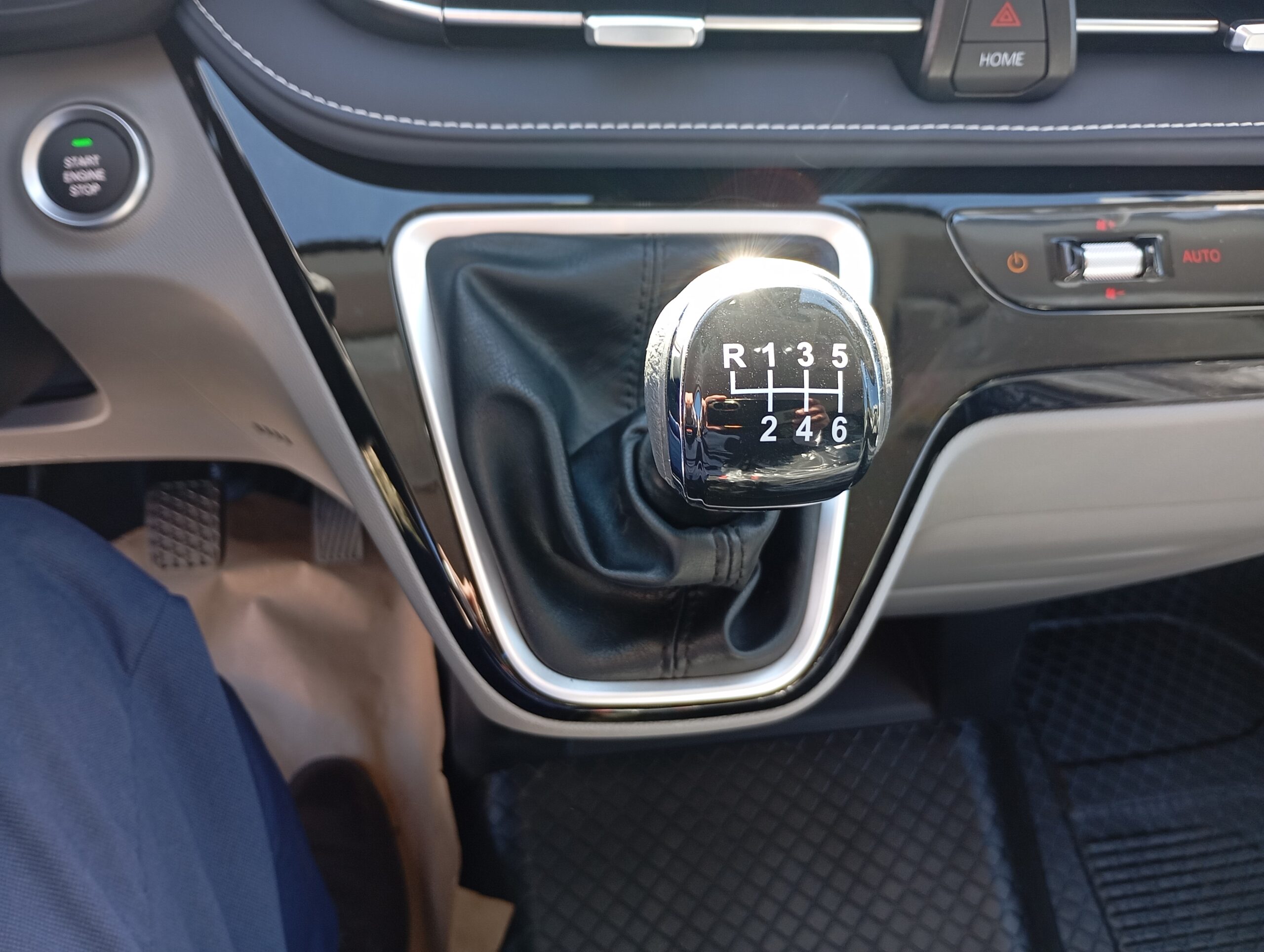

| Gearbox |
MANUAL |
| Number of gears |
6 |
| Dimensions & Capacities |
| Number of seats |
3 |
3 |
| Overall length (mm) |
5372 |
5372 |
| Overall width without mirrors (mm) |
2030 |
2030 |
| Overall height (mm) |
1999 |
1999 |
| Wheel base (mm) |
3357 |
3357 |
| Cargo volume (m³)* |
7,2 |
7,2 |
| Loadspace length (mm) |
2913 |
2913 |
| Loadspace width (mm) |
1800 |
1800 |
| Loadspace height (mm) |
1428 |
1428 |
| Max loadspace width between wheel arches（mm） |
1390 |
1390 |
| Slide door width（mm） |
990 |
990 |
| Slide door height（mm） |
1300 |
1300 |
| Min ground clearance (mm) |
146 |
146 |
| Weights & Payload |
| GVW(kg) |
3500 |
3500 |
| CVW(kg) |
2280 |
2280 |
| Payload：GVW-CVW(kg) |
1220 |
1220 |
| Max axle lead: front/rear(kg) |
1830/2050 |
1830/2050 |
| GTM (kg) |
5200 |
5200 |
| Towing capacity (Braked/Unbraked)(kg) |
2000/750 |
2000/750 |
| Power & Driving |
| Driving wheel |
FWD |
FWD |
| Max speed（km/h) |
160 |
160 |
| Acceleration 0-100km/h (sec) |
21,7 |
21,7 |
| Min turning diameter（m） |
13,4 |
13,4 |
| Approach angle/departure angle (CVW)（°） |
|
|
| Approach angle/departure angle (GVW)（°） |
|
|
| Maximum Climbing Capacity （%） |
25% |
25% |
| Tyre |
215/65R16C |
215/65R16C |
| BRAKES Front/Rear |
Front/Rear Disc Brake |
| Exterior |
| Solid Paint (White) |
S |
S |
| Metallic Paint (Blue, Brown, Silver，Black) |
O |
O |
| LED Headlight + LED Rear Taillight |
S |
S |
| Automatic headlight |
S |
S |
| Front & Rear fog lights |
S |
S |
| Steel Wheels 6.5 x 16 |
S |
S |
| heated exterior mirrors |
S |
S |
| Roof rack mounting points |
S |
S |
| Rear trailer tow interface |
S |
S |
| Rear trailer tow interface with controller* |
O |
O |
| Interior & Comfort |
| Electric Power Steering |
S |
S |

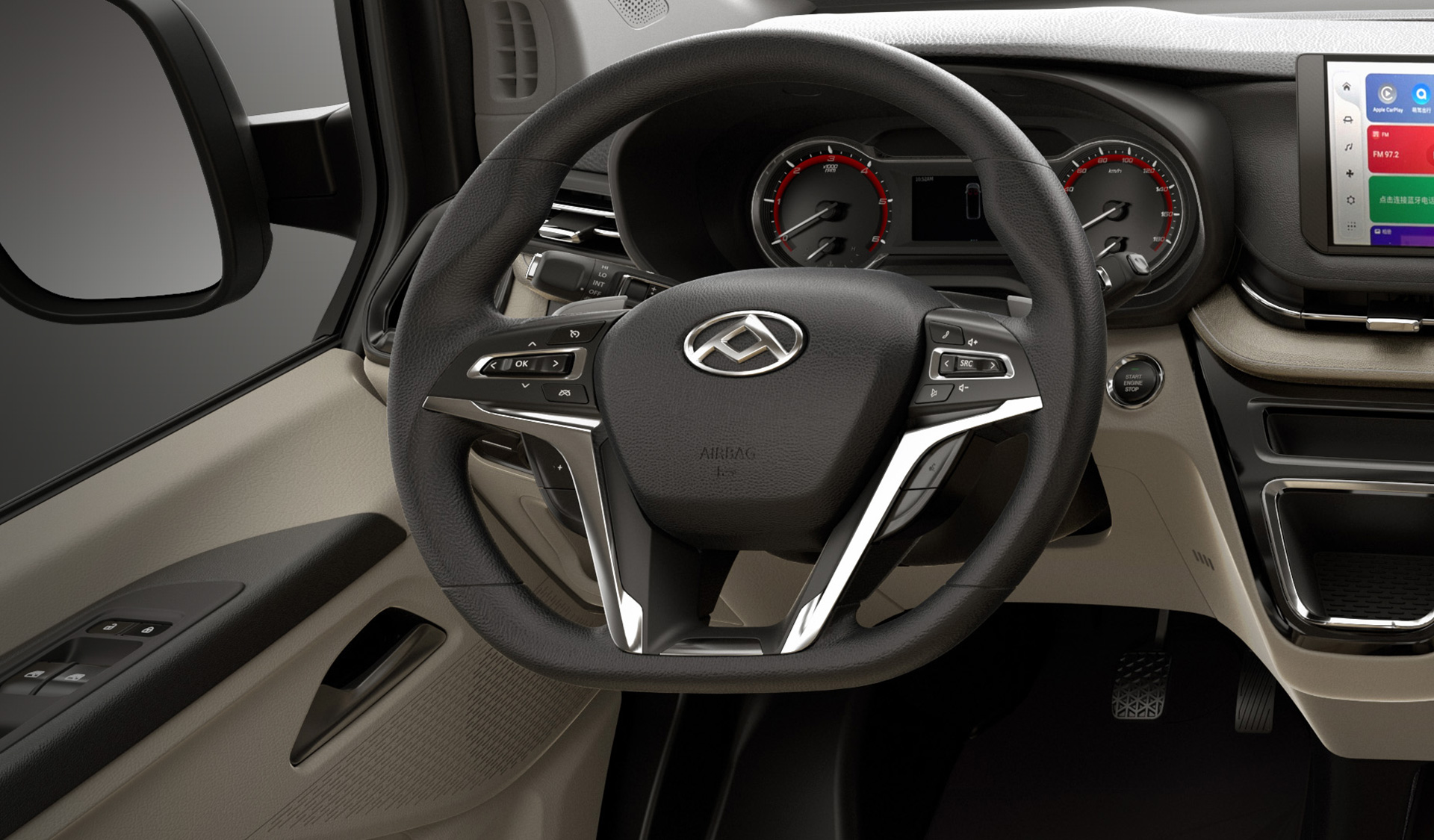

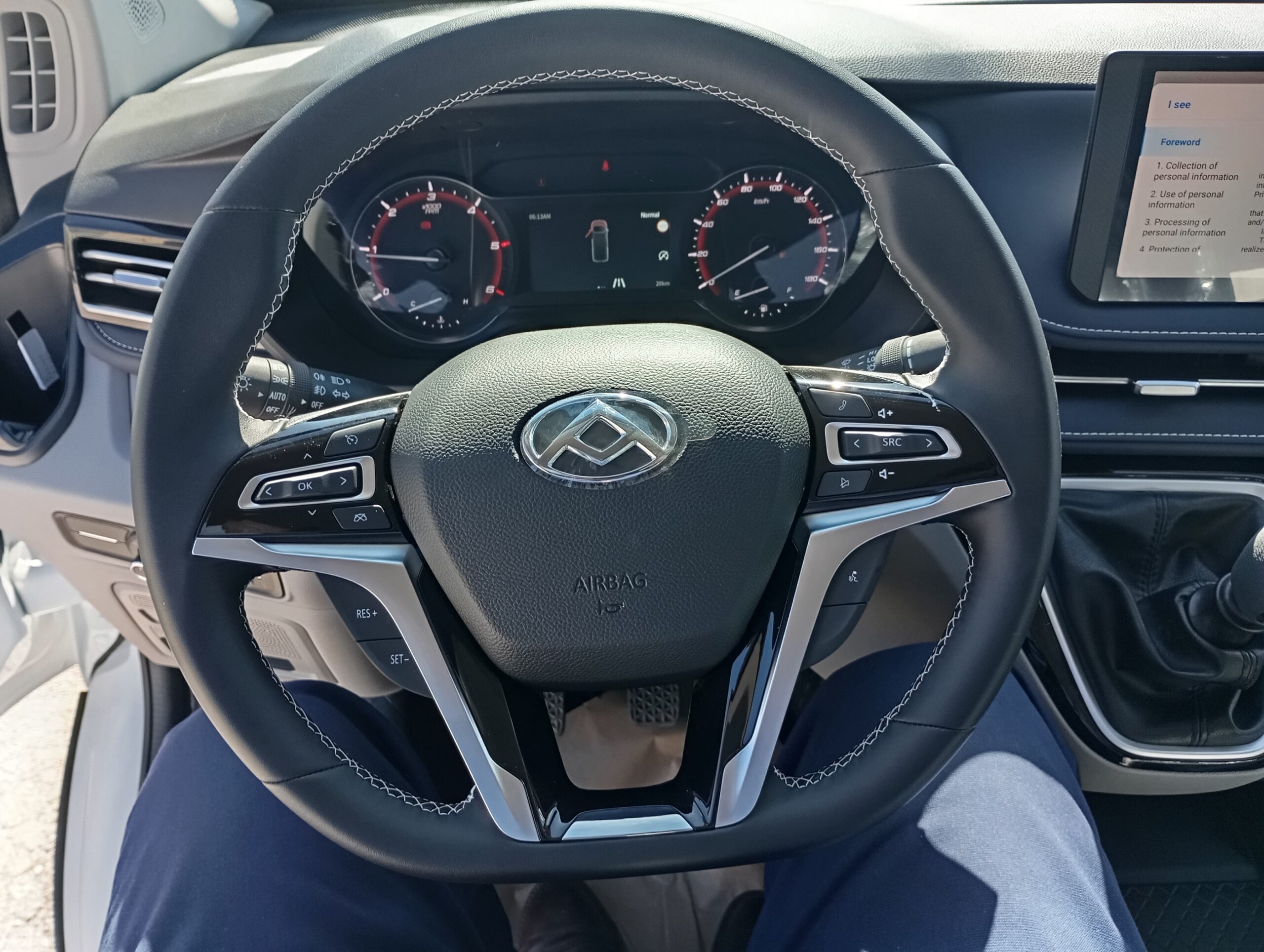

| Man-made-leather Multifunctional steering wheel |
S |
S |

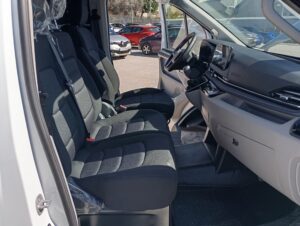

Manually Driver Seat with Single Armrest
（height-Adjustable, Silding, Reclining, Adjustable Lumbar support, cusion-adjustable） |
S |
S |
| Dual Passenger Seat |
S |
S |

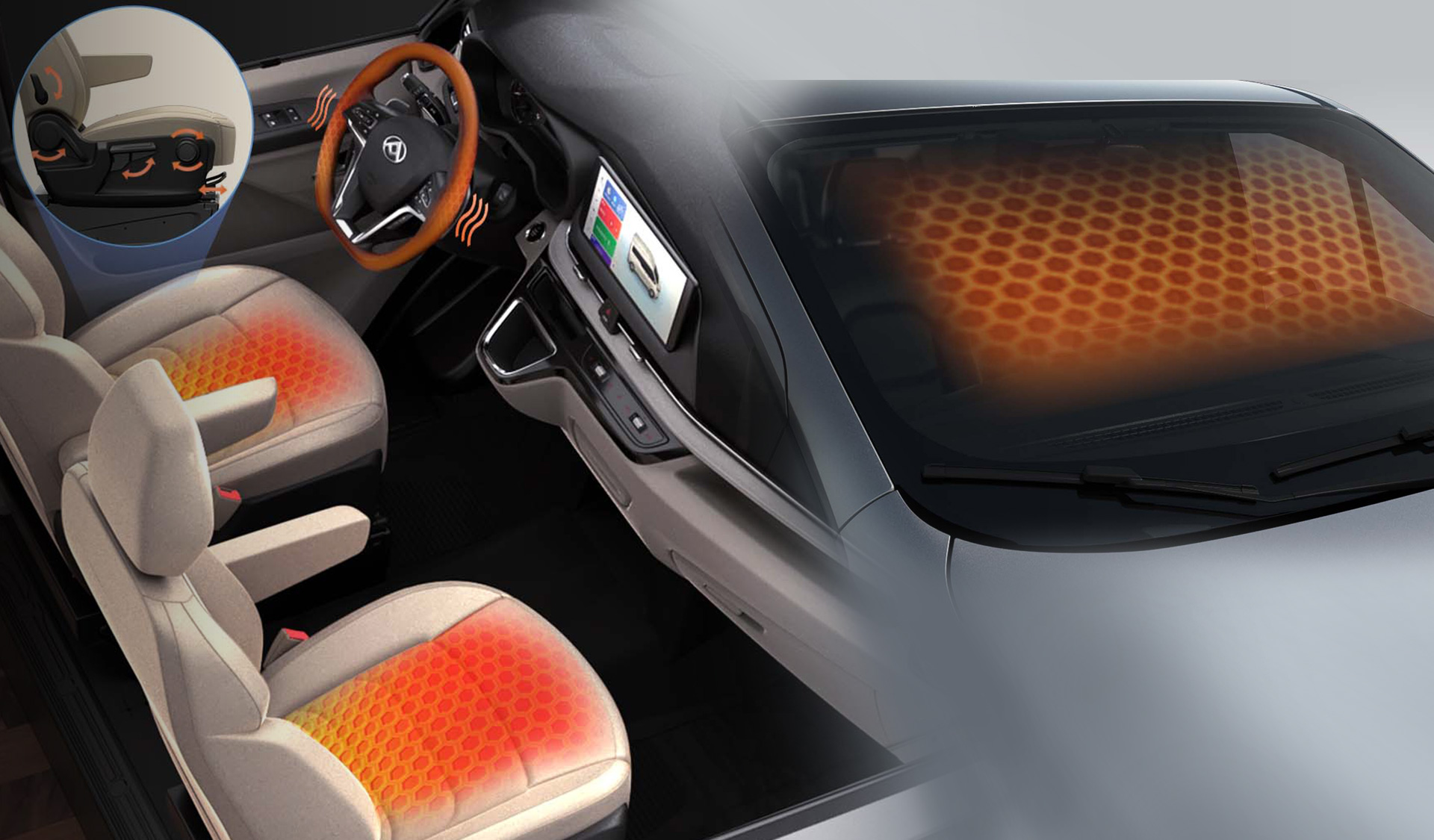

| Heated Pack – Heated Seat, Heated Windshield |
O |
O |
| Anti-glare interior mirror |
S |
S |

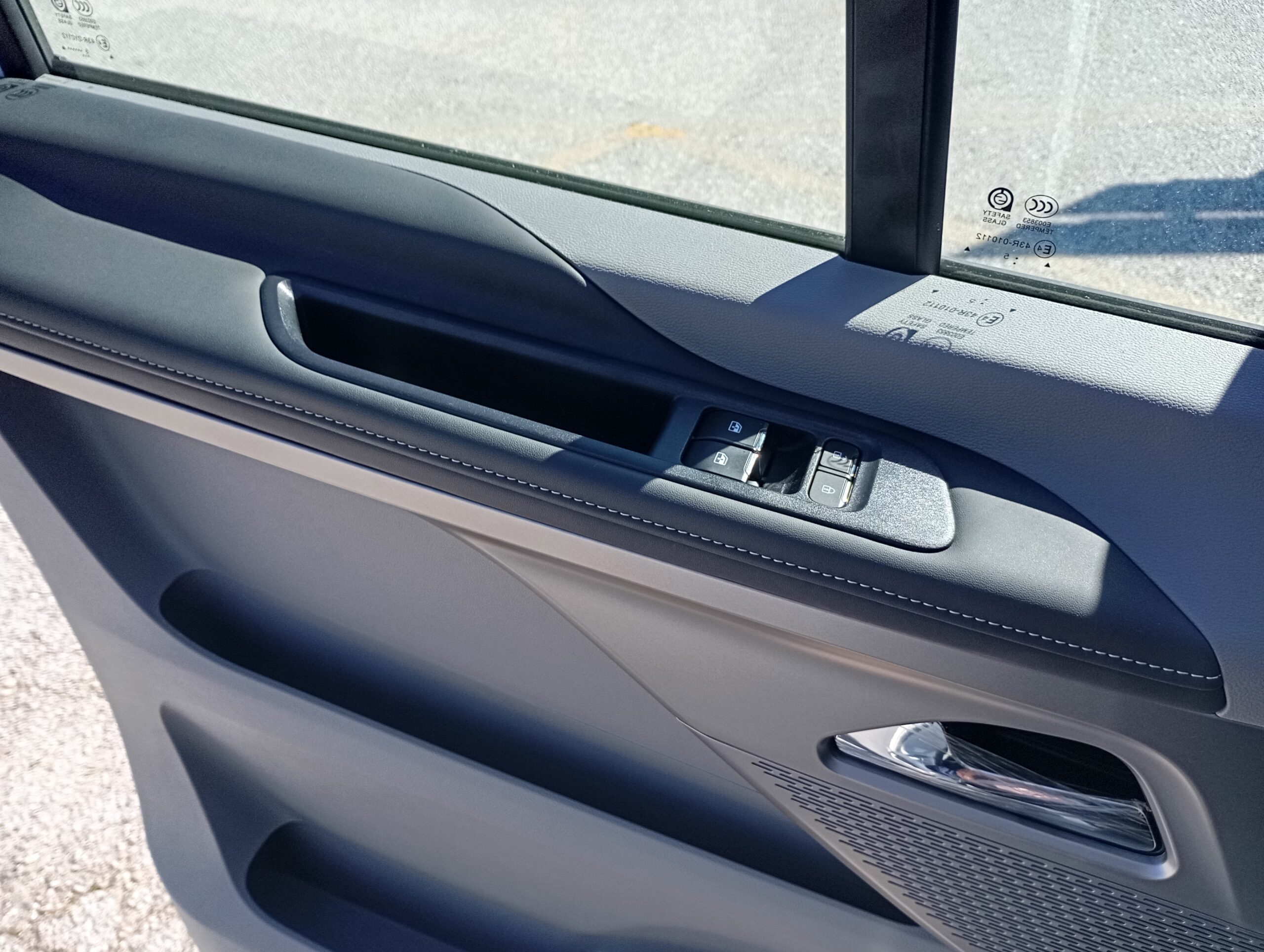

| Drive&Passenger Side Power Windows(one touch up&down) |
S |
S |
| Automatic windshield wiper |
S |
S |

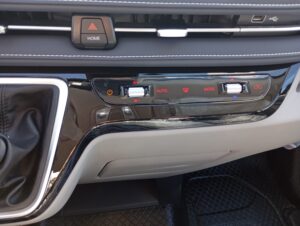

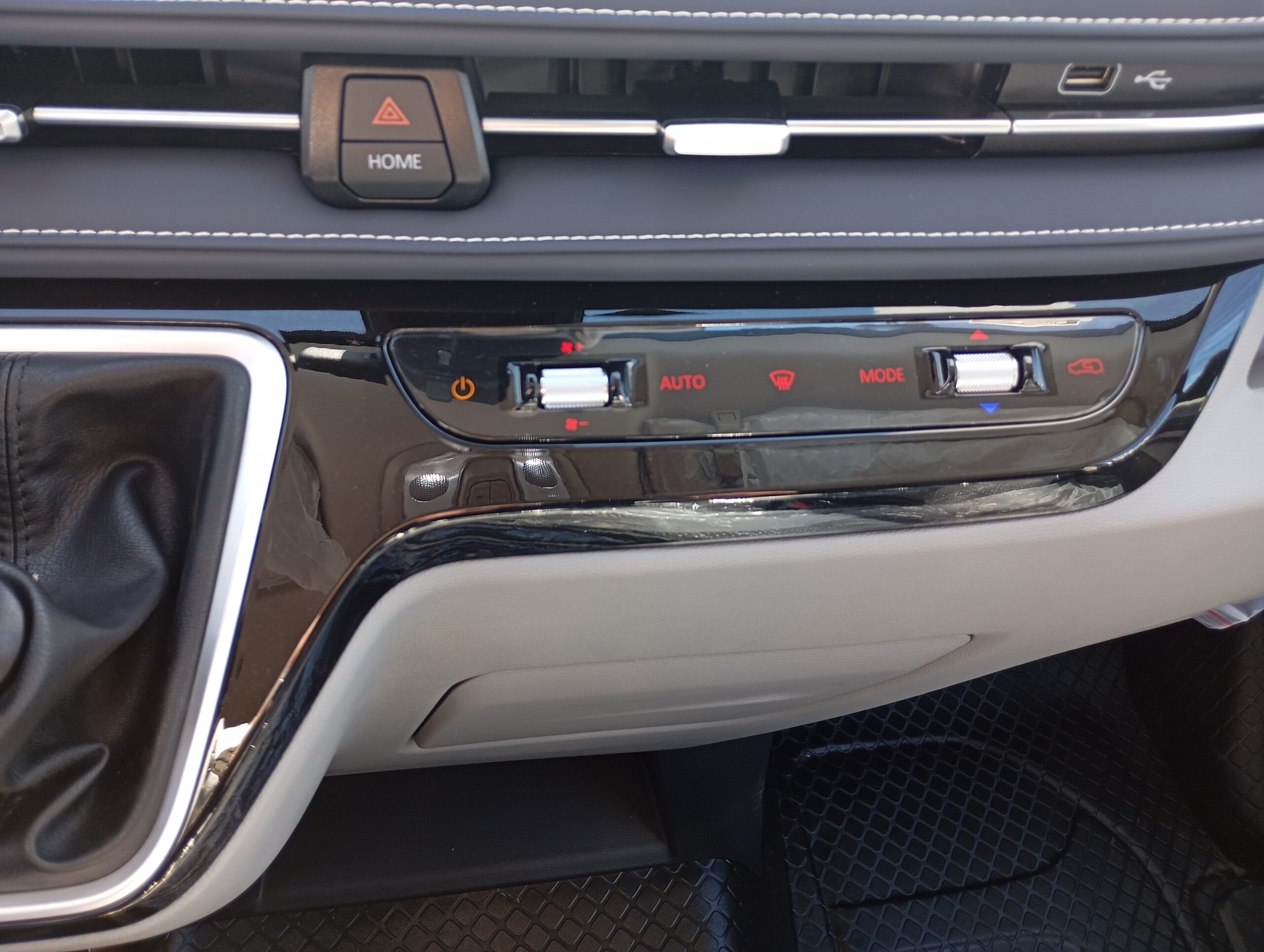

| Manual front air Conditioning |
S |
S |
| Automatic front air Conditioning |
O |
O |

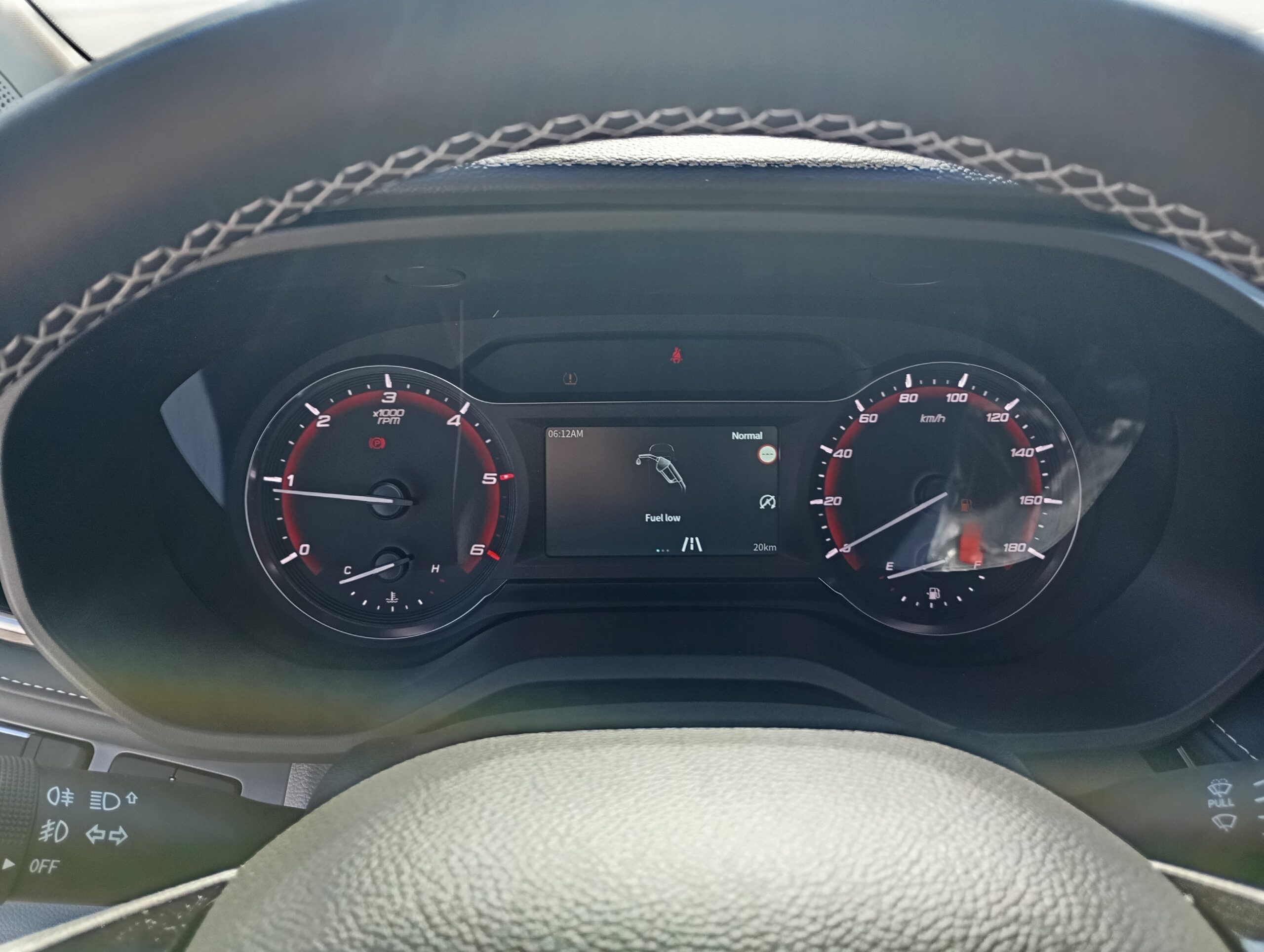

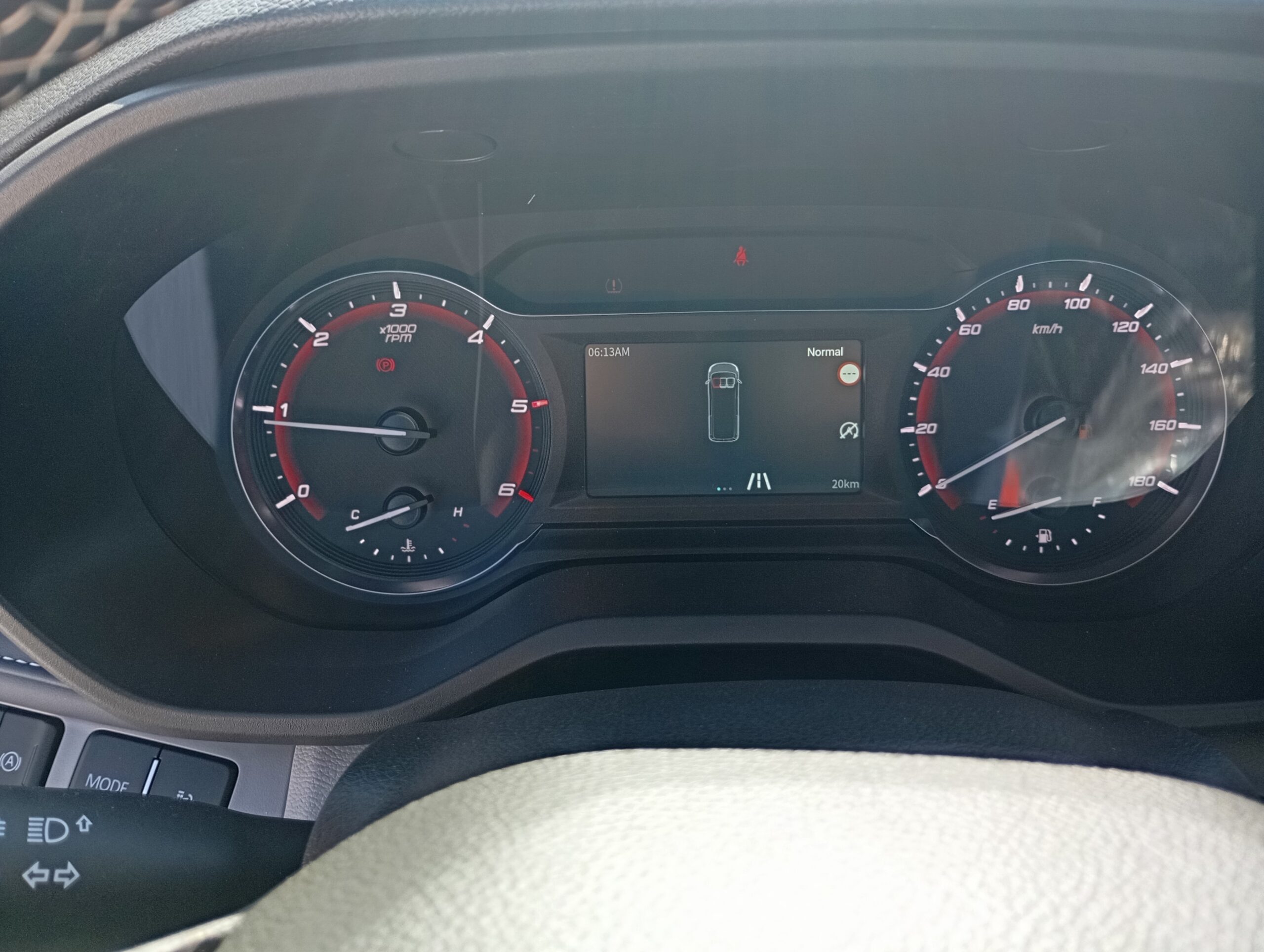

| 4.2′ LCD Instrument |
S |
S |

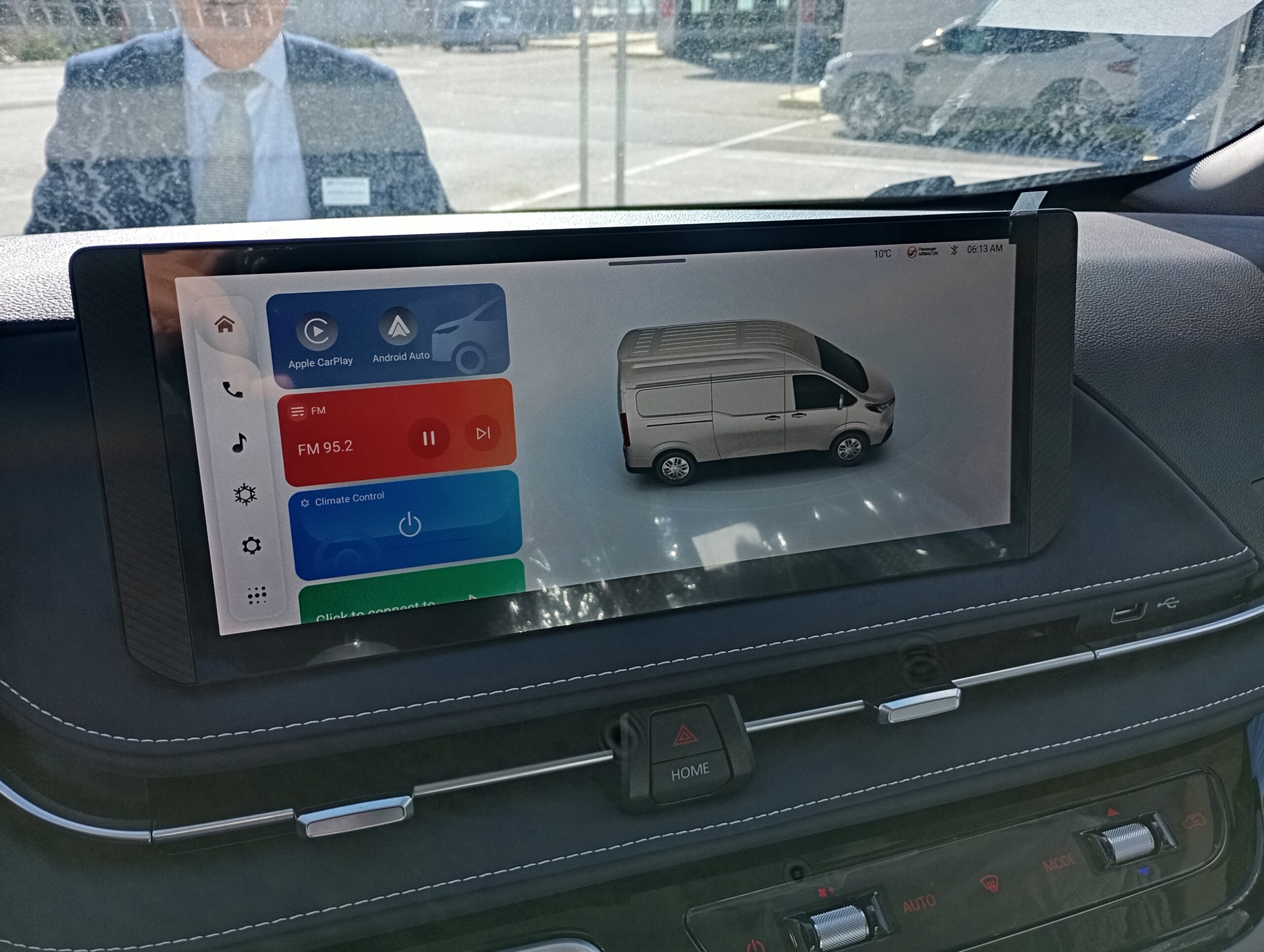

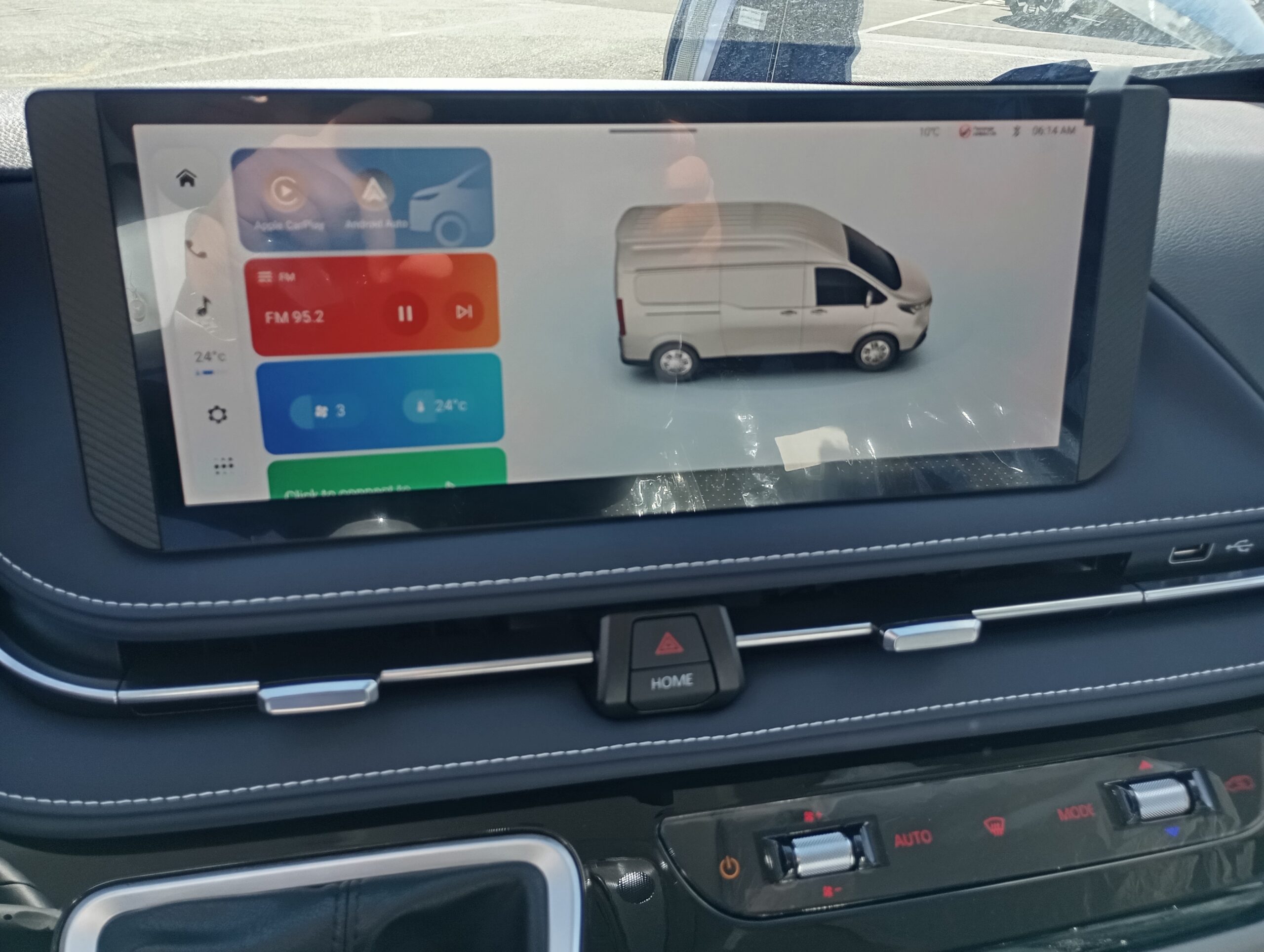

| 12.3″ touch screen with MP5 & Bluetooth & Carplay & Android Auto |
S |
S |

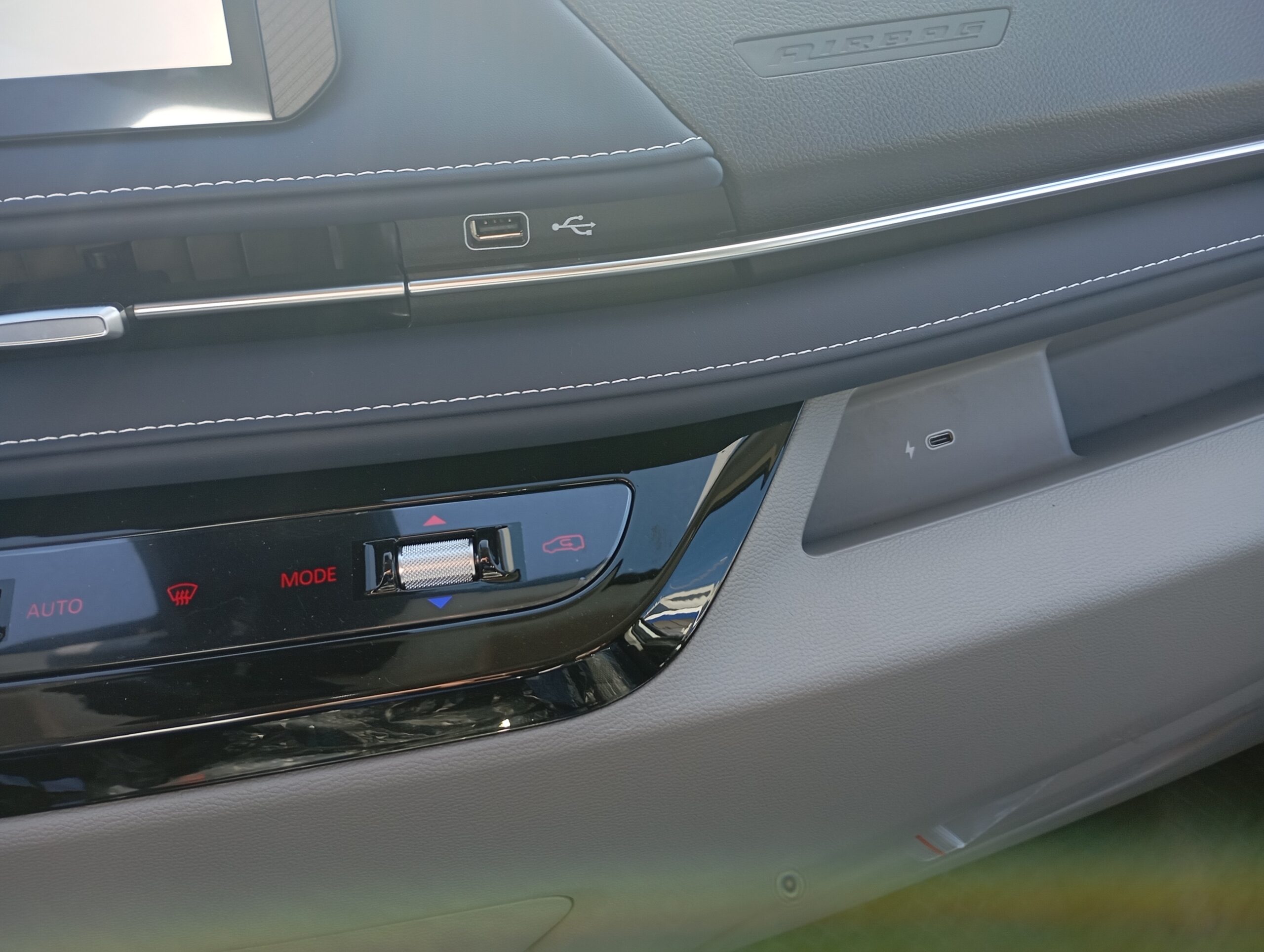

| USB input |
S |
S |
| Type C input |
S |
S |
| 4 speakers |
S |
S |
| DAB |
S |
S |
| 2 smart keys+Keyless start |
S |
S |
| Cargo Area |

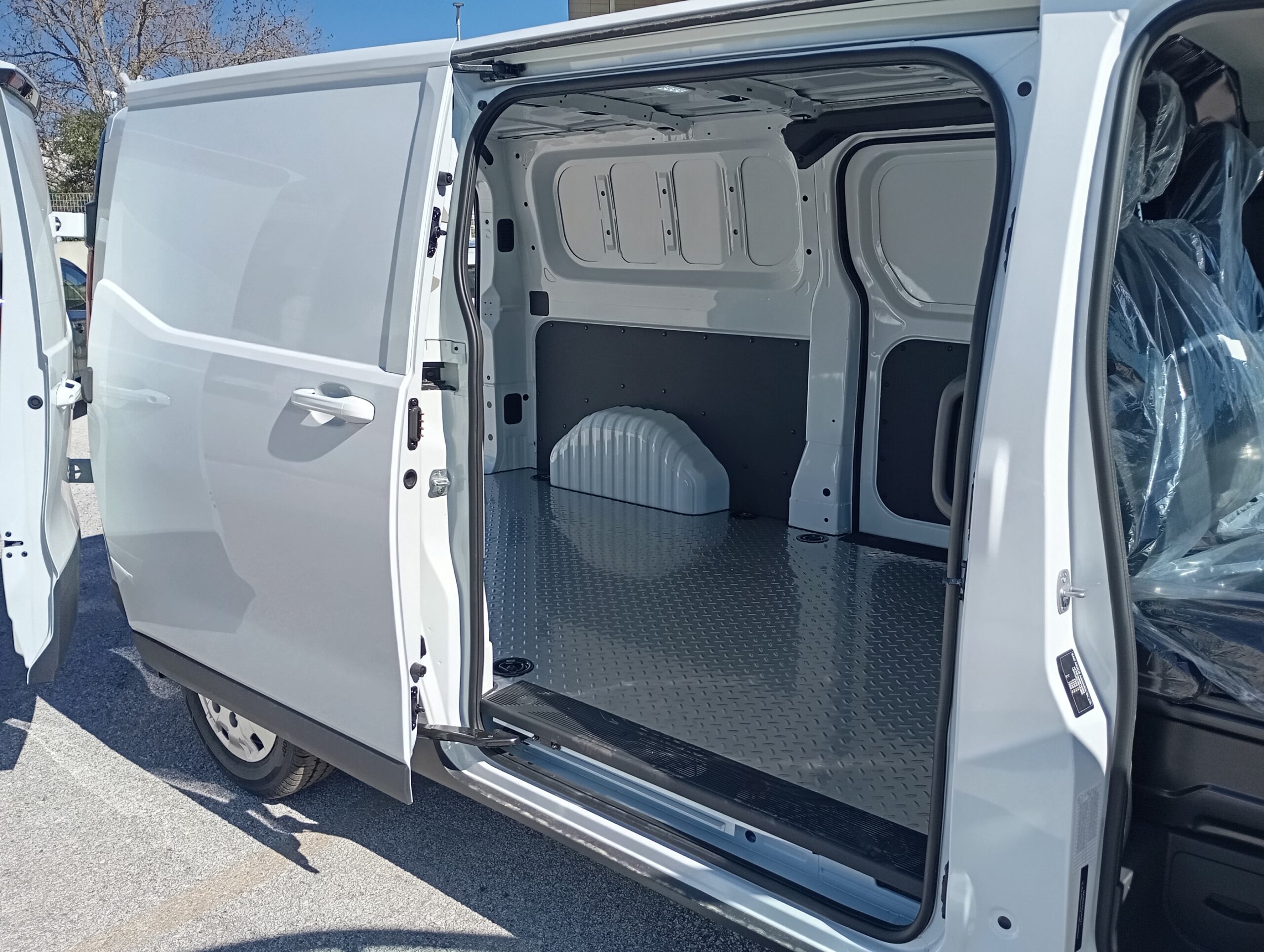

| Steel Cargo Floor |
S |
S |
| Full Steel bulkhead |
S |
S |
| Steel bulkhead with observation window |
O |
O |

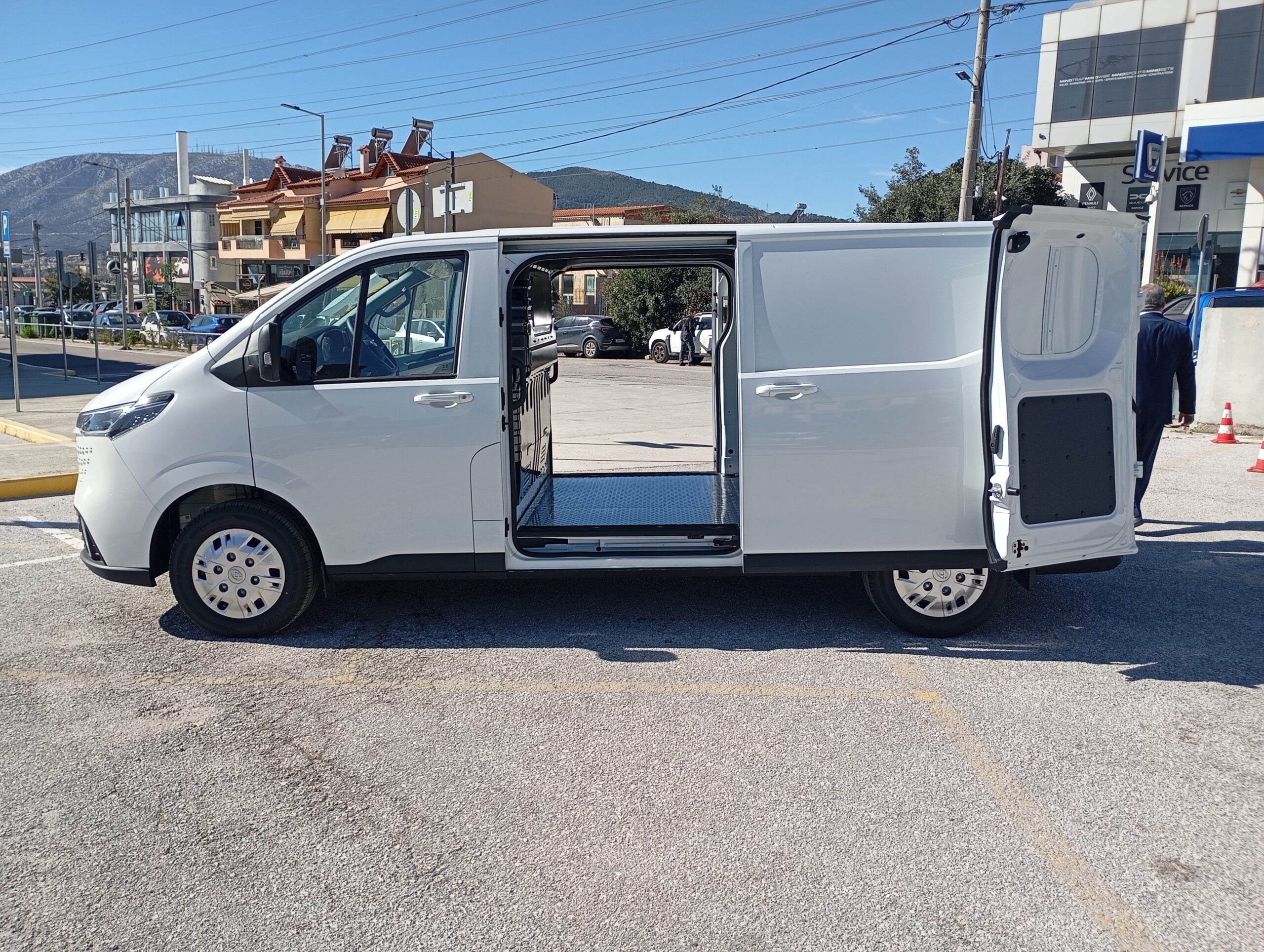

| Single sliding door |
S |
— |
| Dual sliding door |
— |
S |
| Electric Side Step (Only kerbside) |
S |
O |
| LED cargo lights |
S |
S |

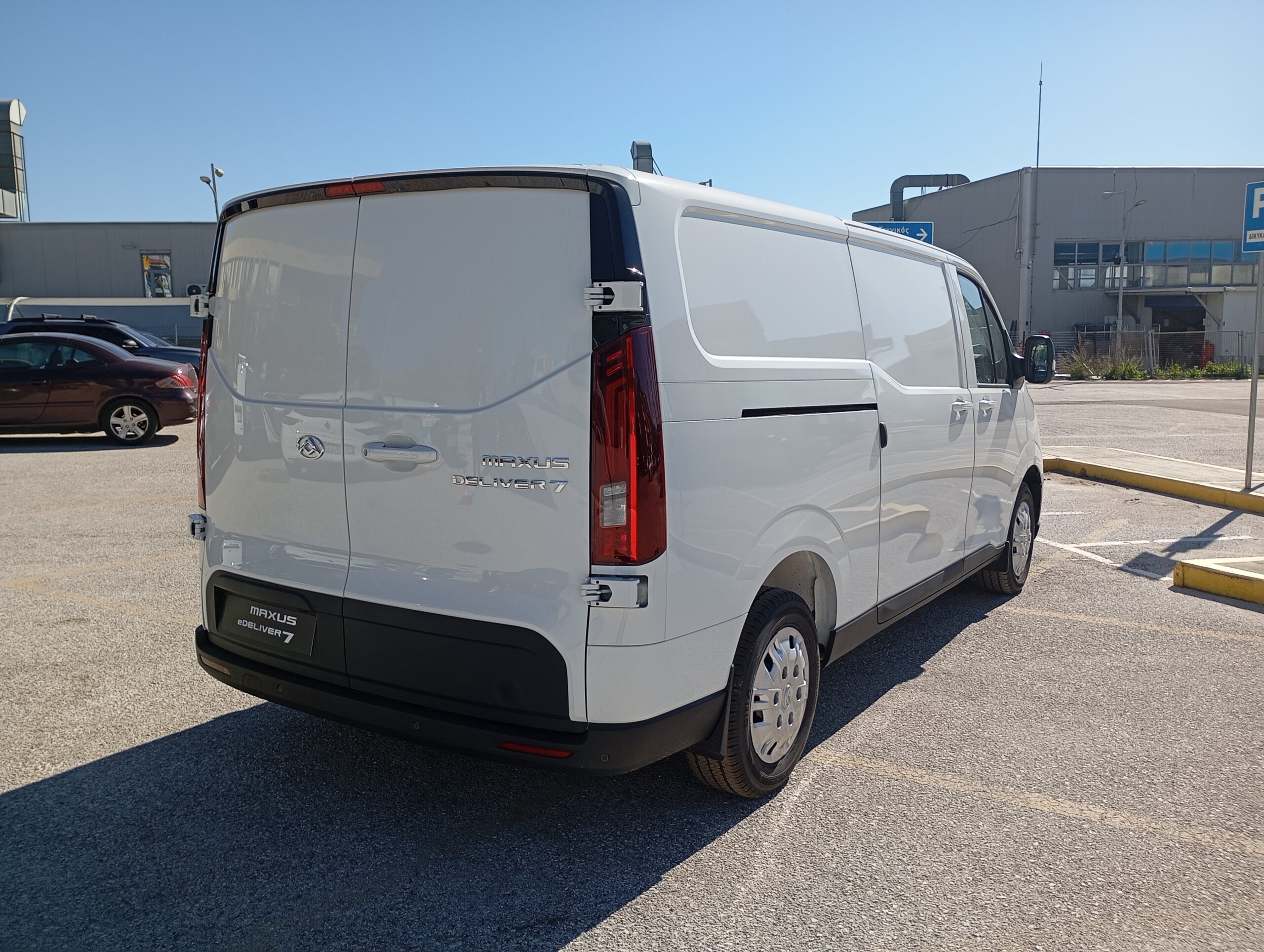

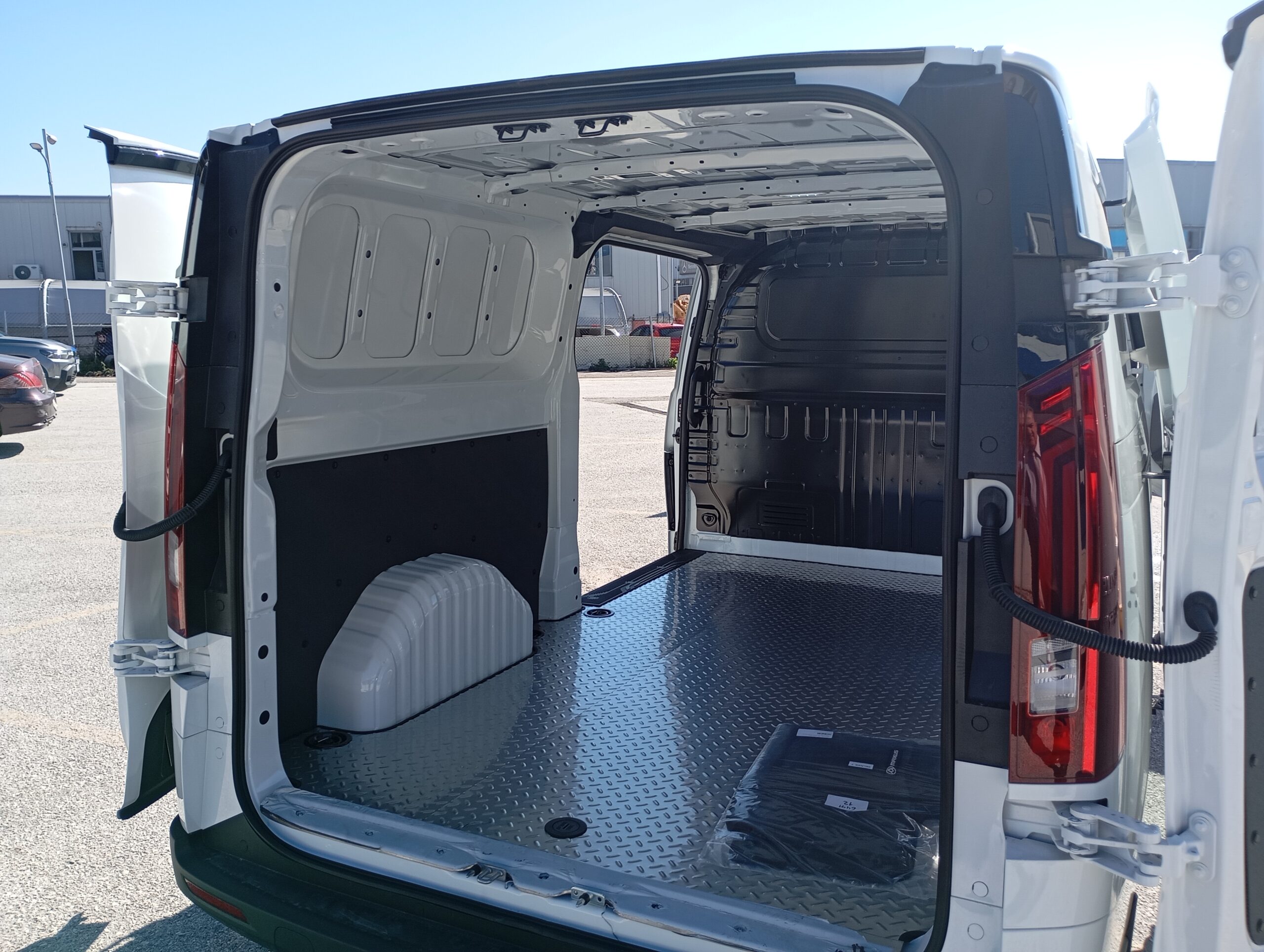

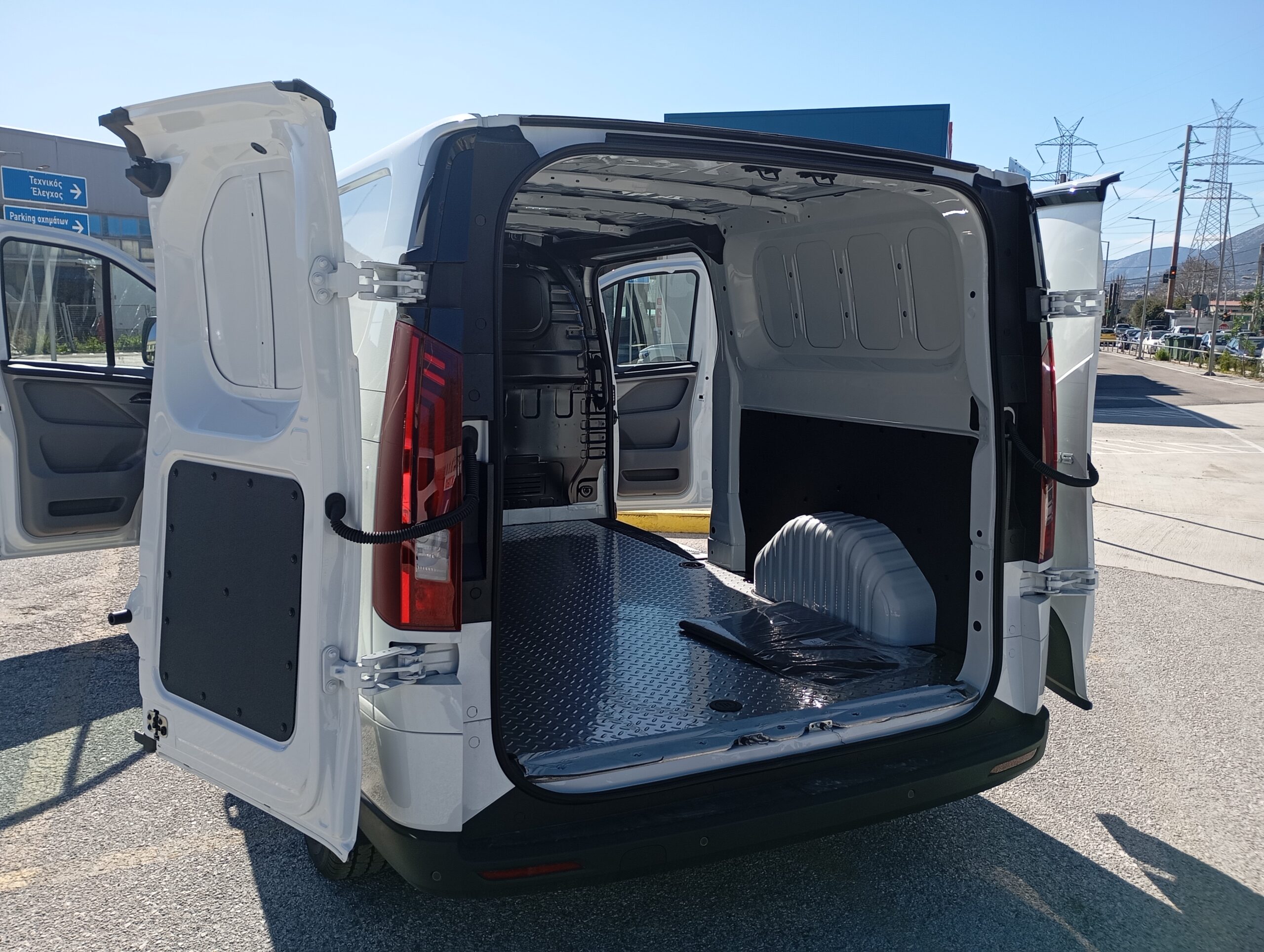

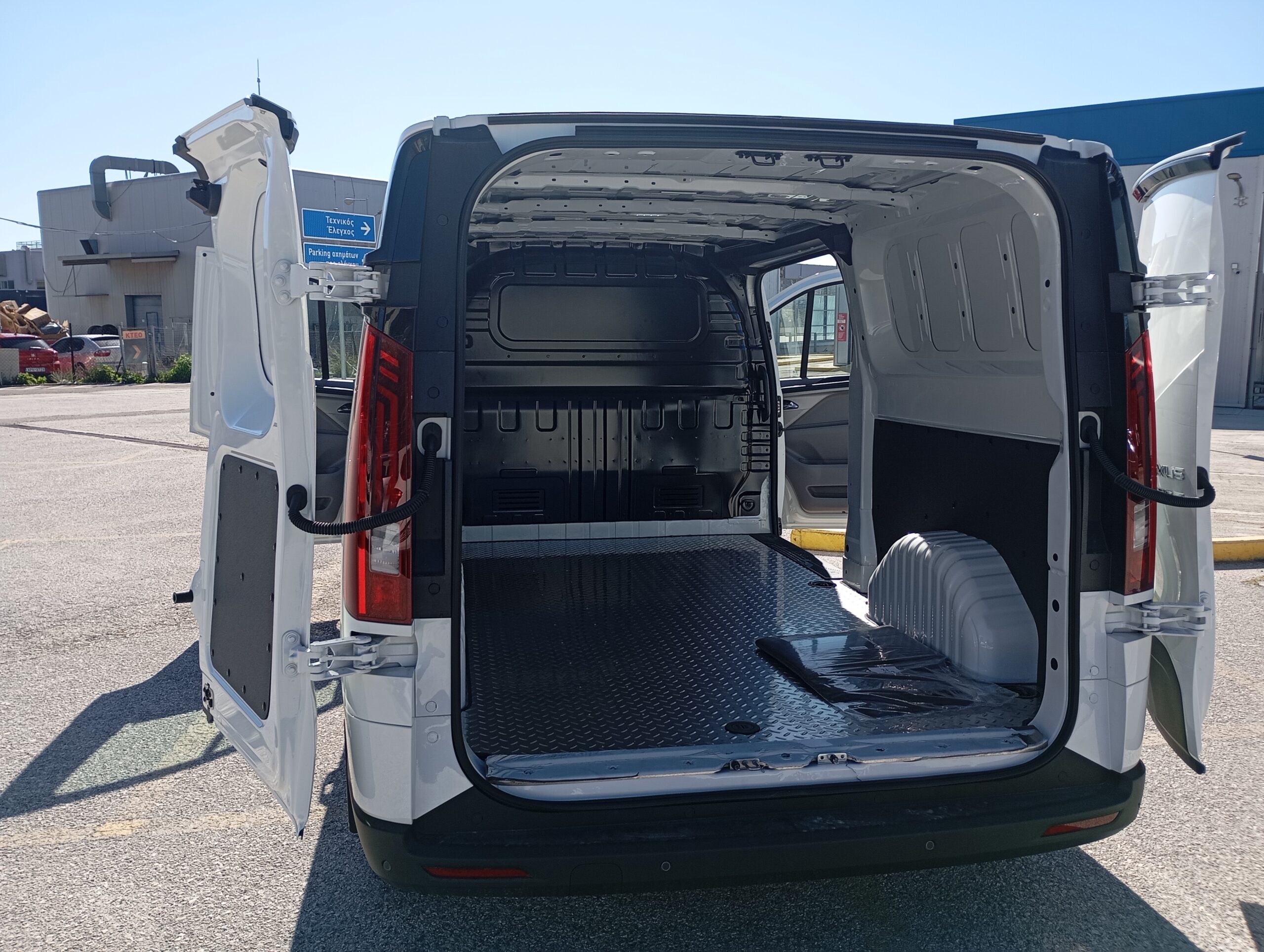

| Rear Wing Doors with 90°/180° Openging |
S |
S |
| Safety & Security |
| Tyre pressure monitoring system |
S |
S |
| 6 airbags (front,side,curtain) for driver & front passengers |
S |
S |
| ECall |
S |
S |
| Safety belt reminder |
S |
S |

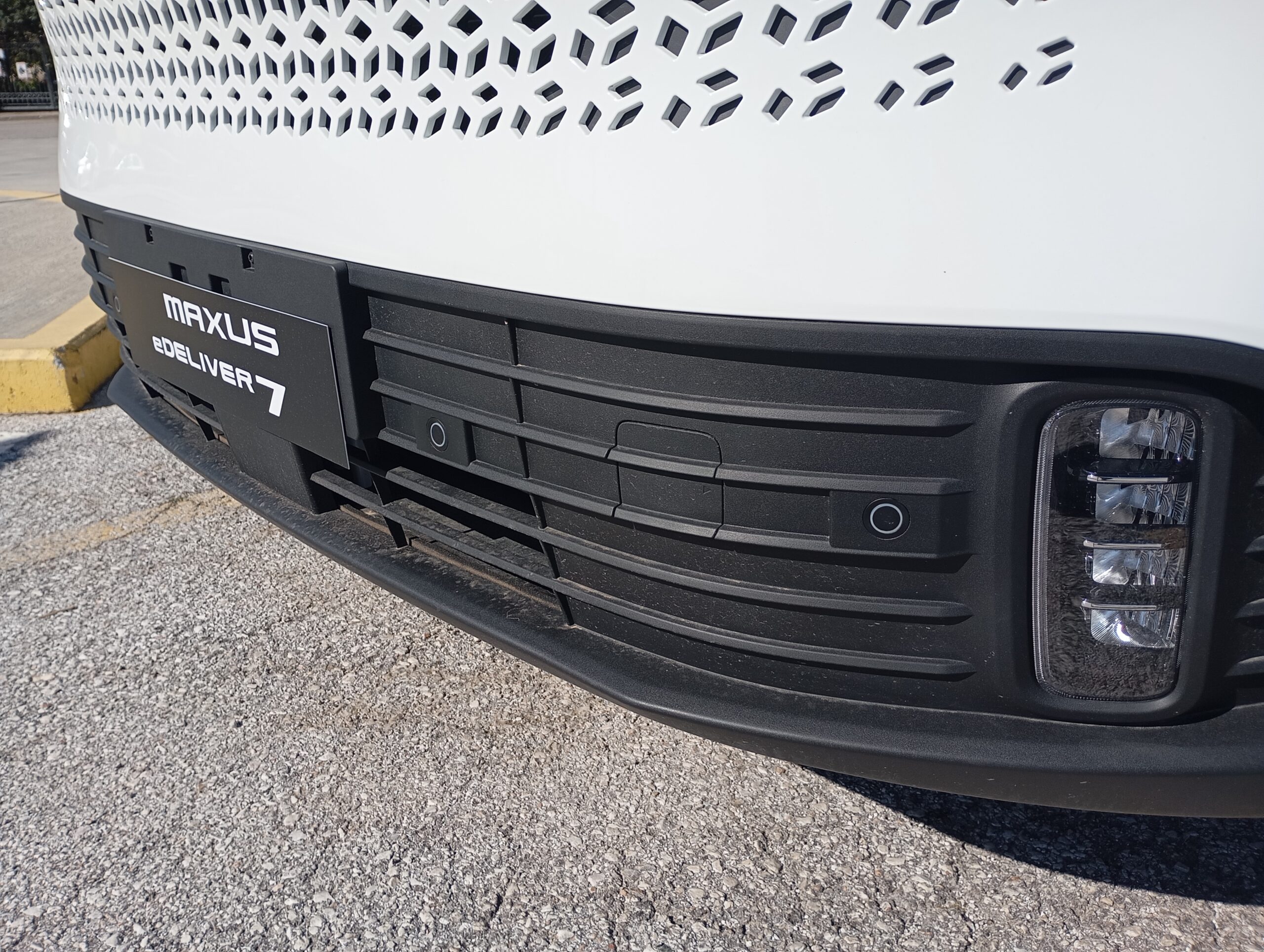

| Front radar |
S |
S |

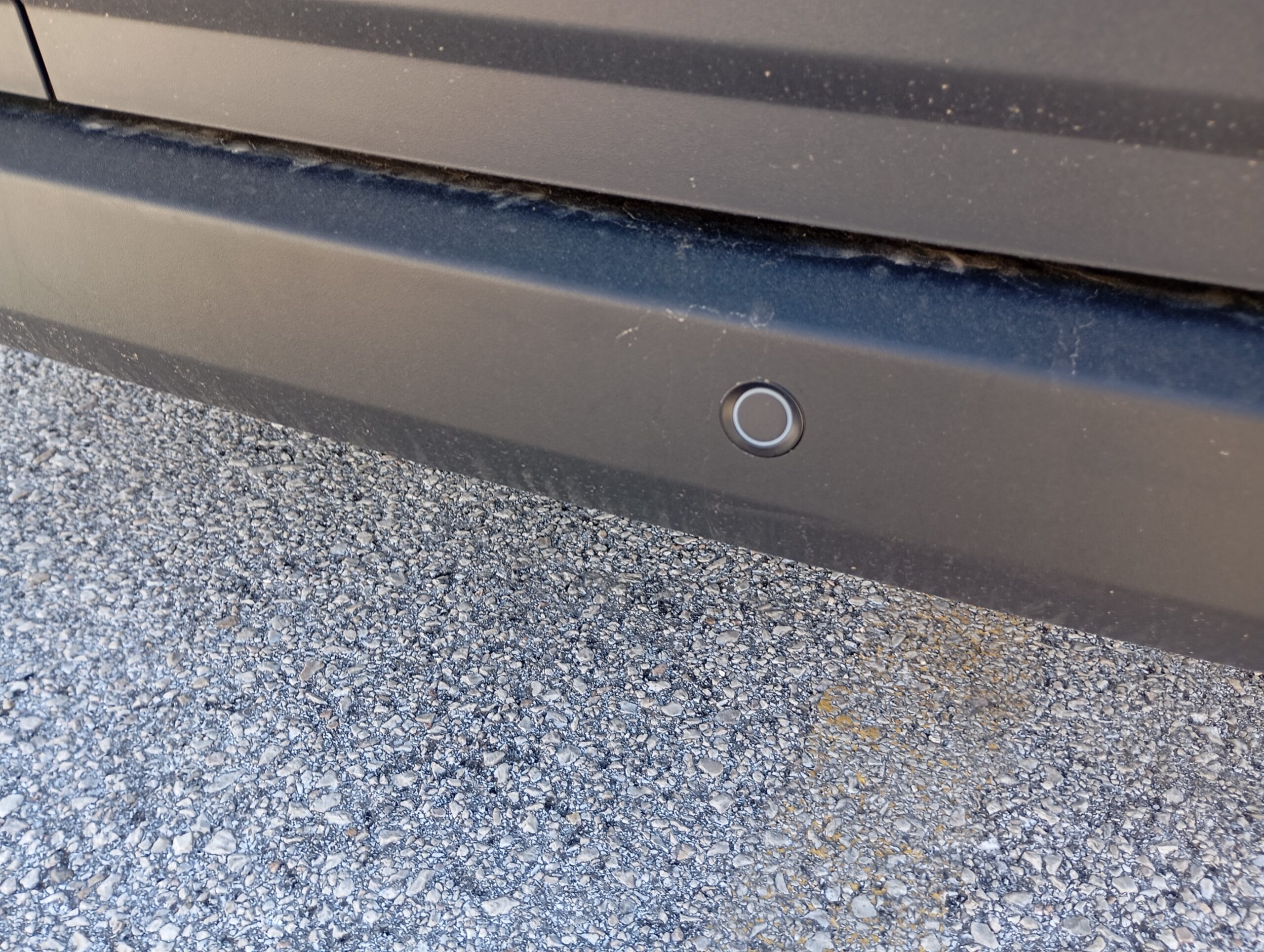

| Rear radar |
S |
S |

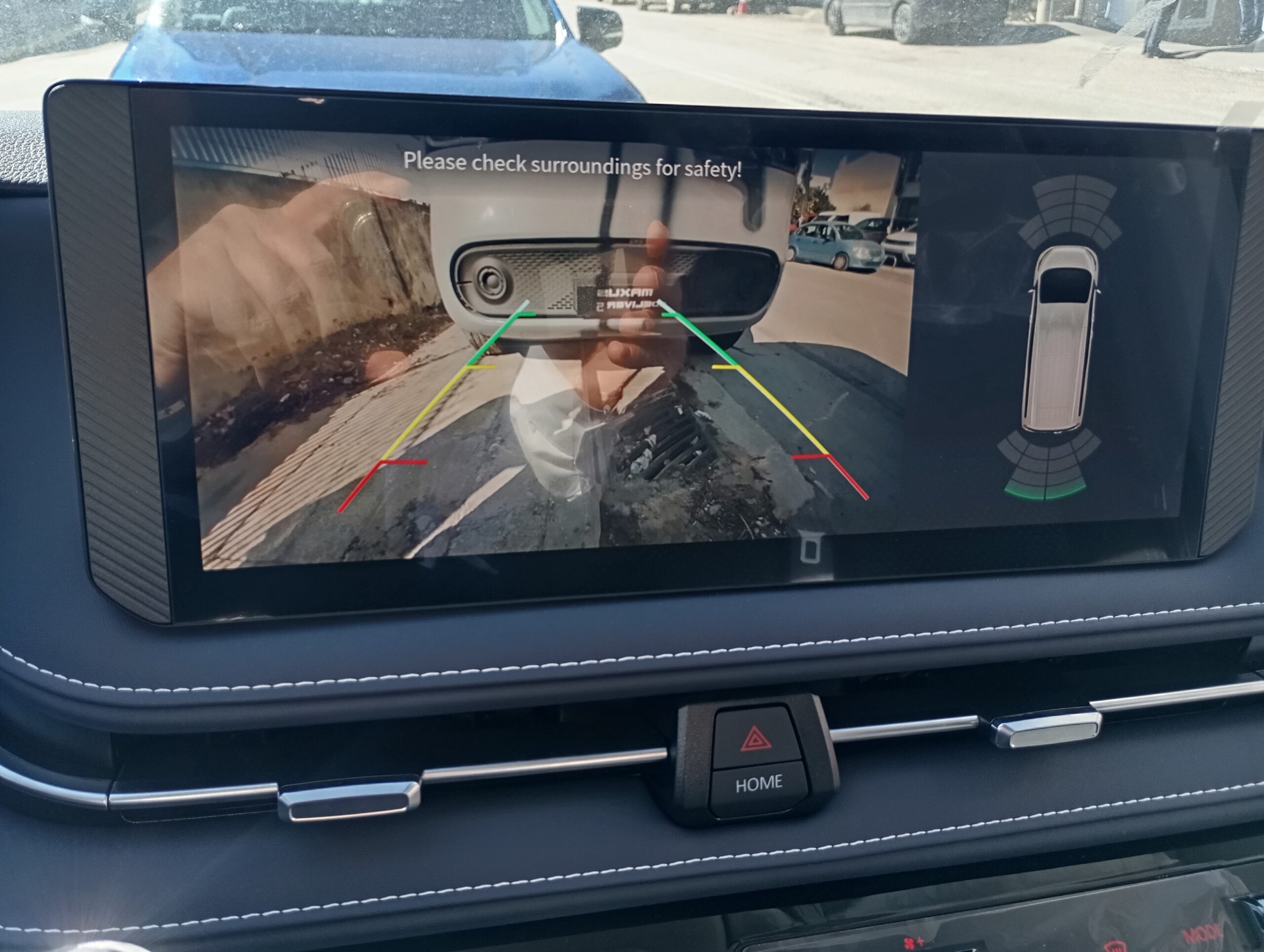

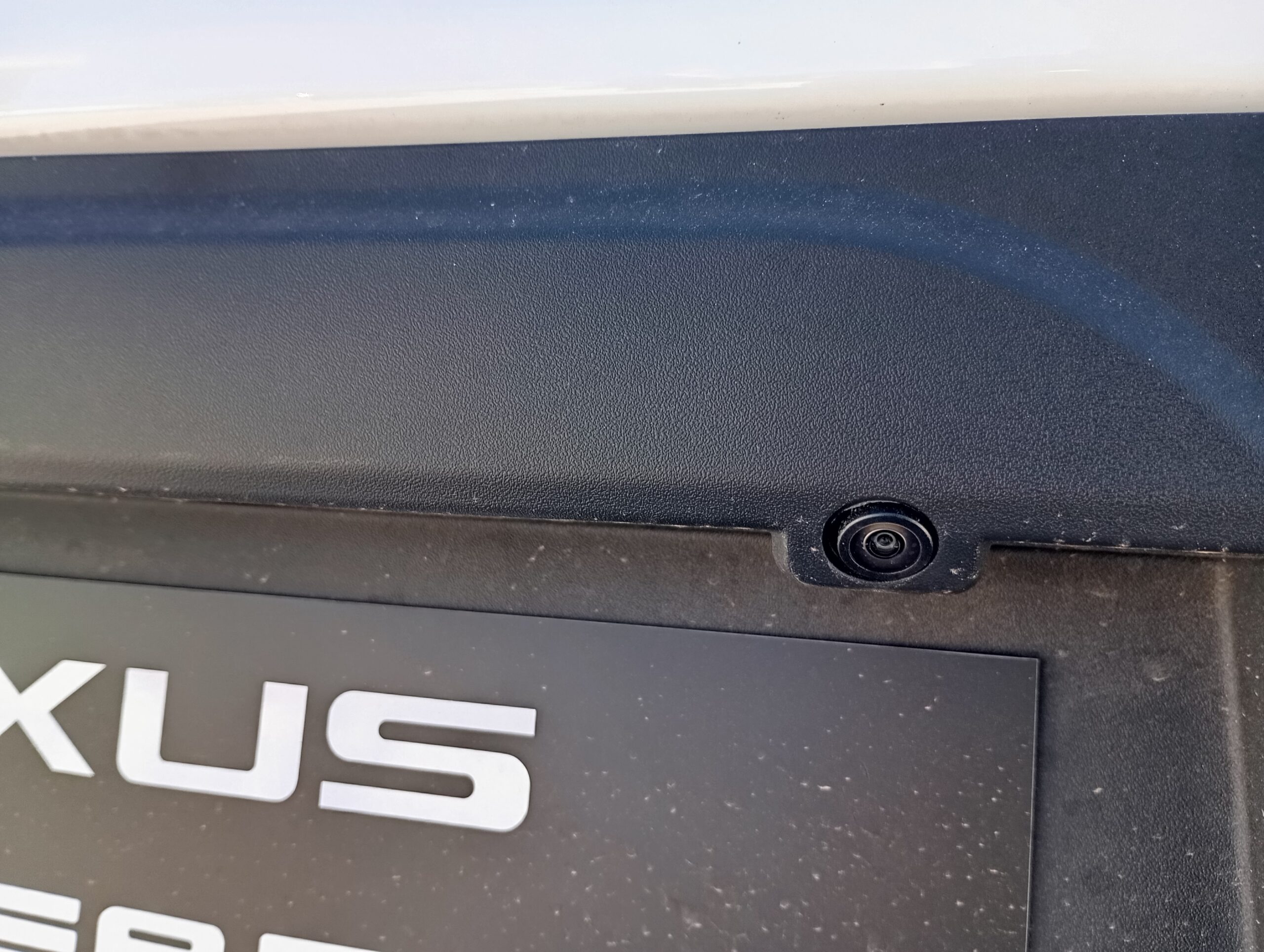

| Reversing Camera |
S |
S |
| 360° Camera |
O |
O |
| Central Lock |
S |
S |
| With DPF One Key Regeneration |
S |
S |
| Driver Assistance |
| ESP+EBA+HHC |
S |
S |

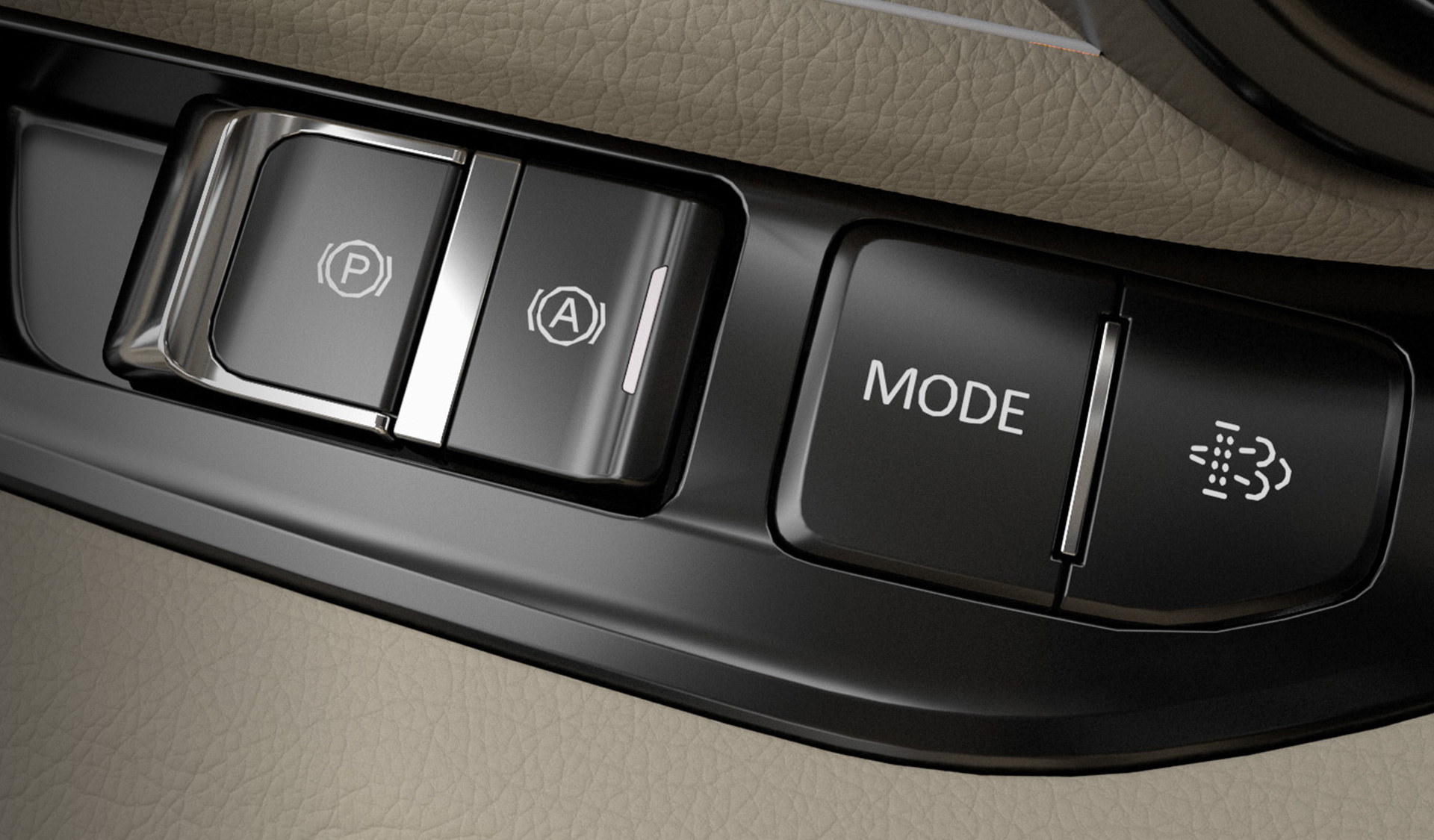

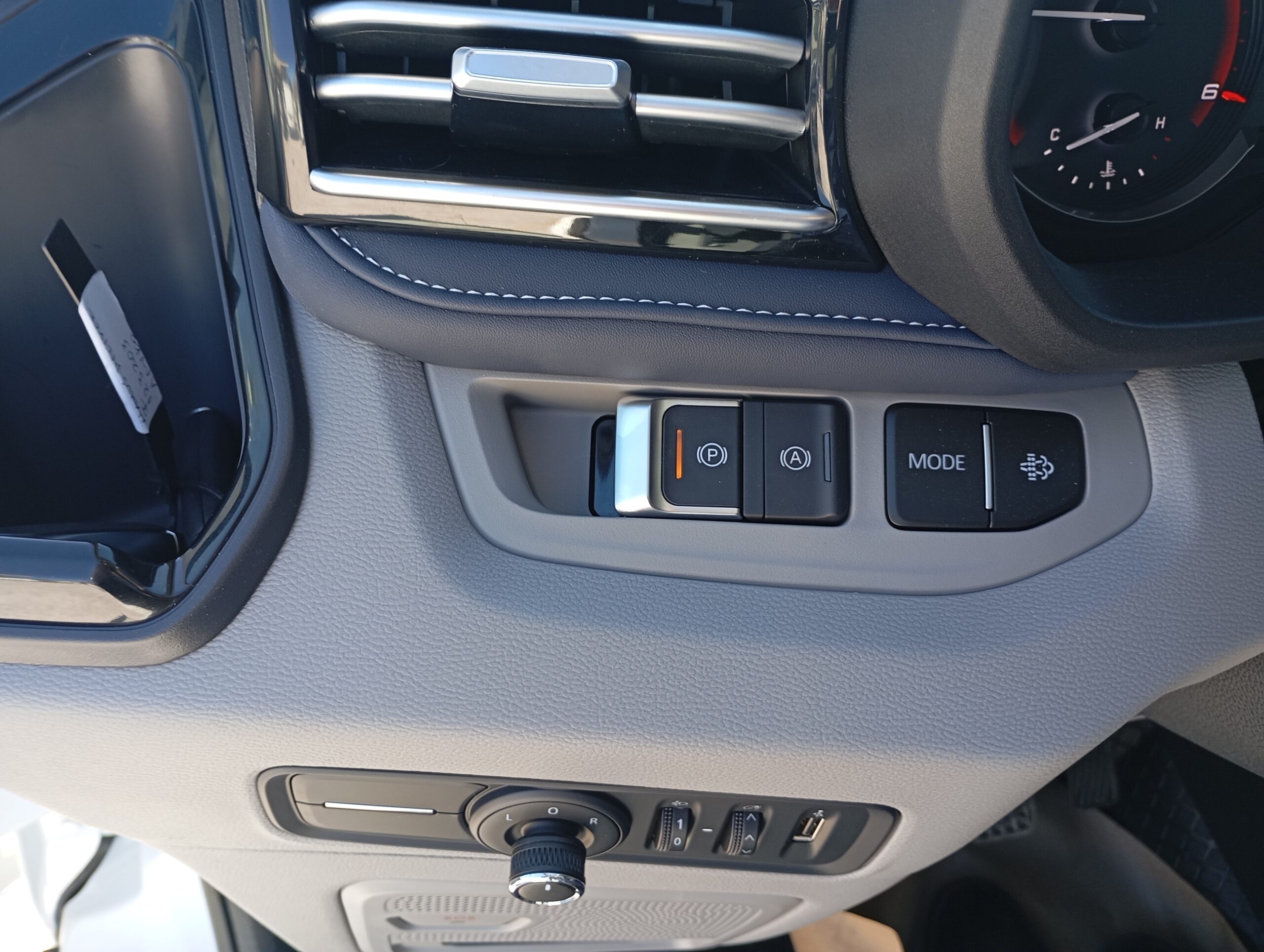

| Electronic Parking Brake |
S |
S |
| Cruise Control |
S |
S |
| Automatic emergency braking system |
S |
S |
| FCW (Front Collision Warning System) |
S |
S |
| Rear Cross Traffic Alert |
S |
S |
| Lane departure warning & lane keeping assist system |
S |
S |
| Emergency Lane Keeping Assist System |
S |
S |
| Blind spot detection & door-open warning system |
S |
S |
| Lane change assist |
S |
S |
| Speed limit information |
S |
S |
| Driver monitor system |
S |
S |
| Adjustable overspeed warning |
S |
S |
